Products | Fluid Tech

PD Meters

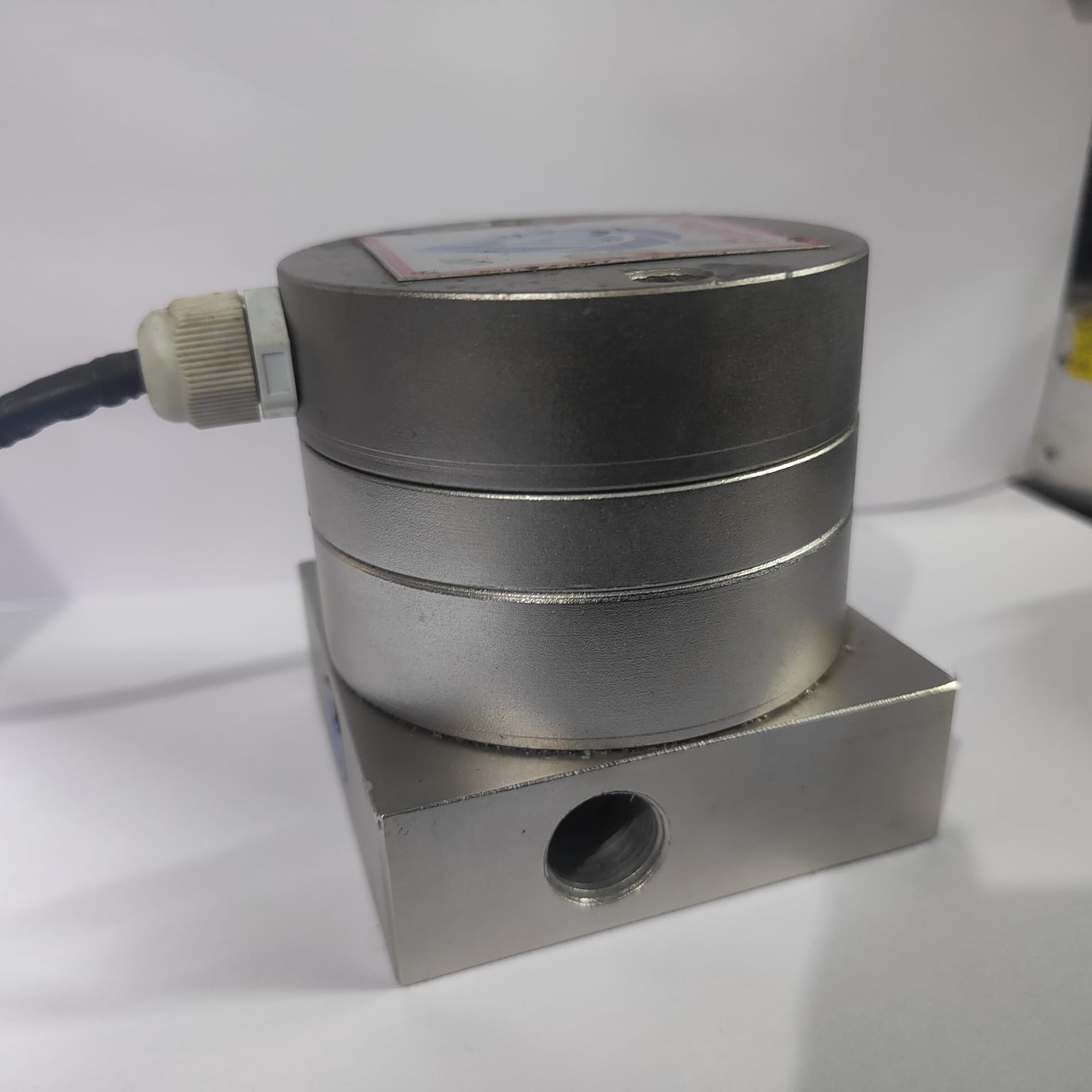

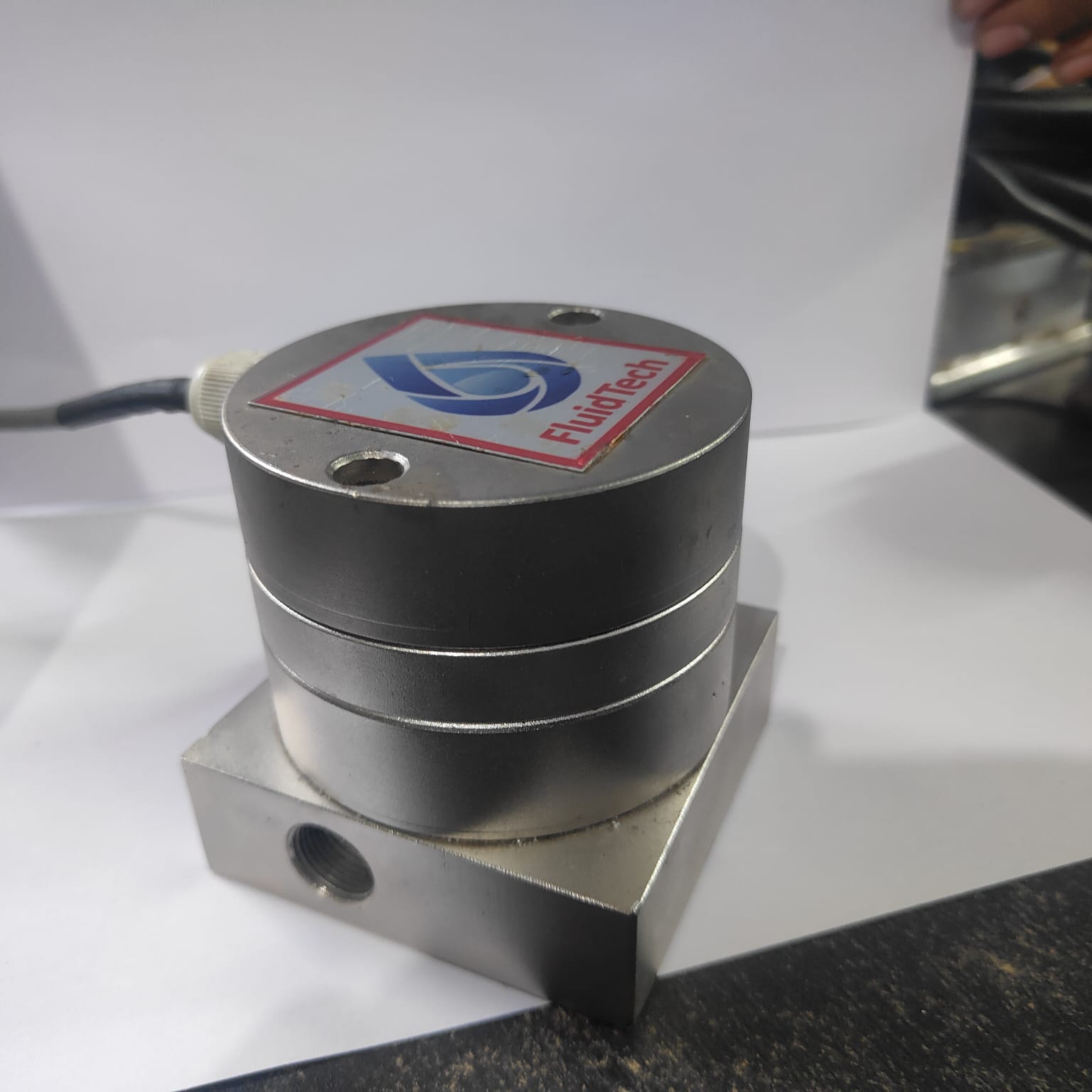

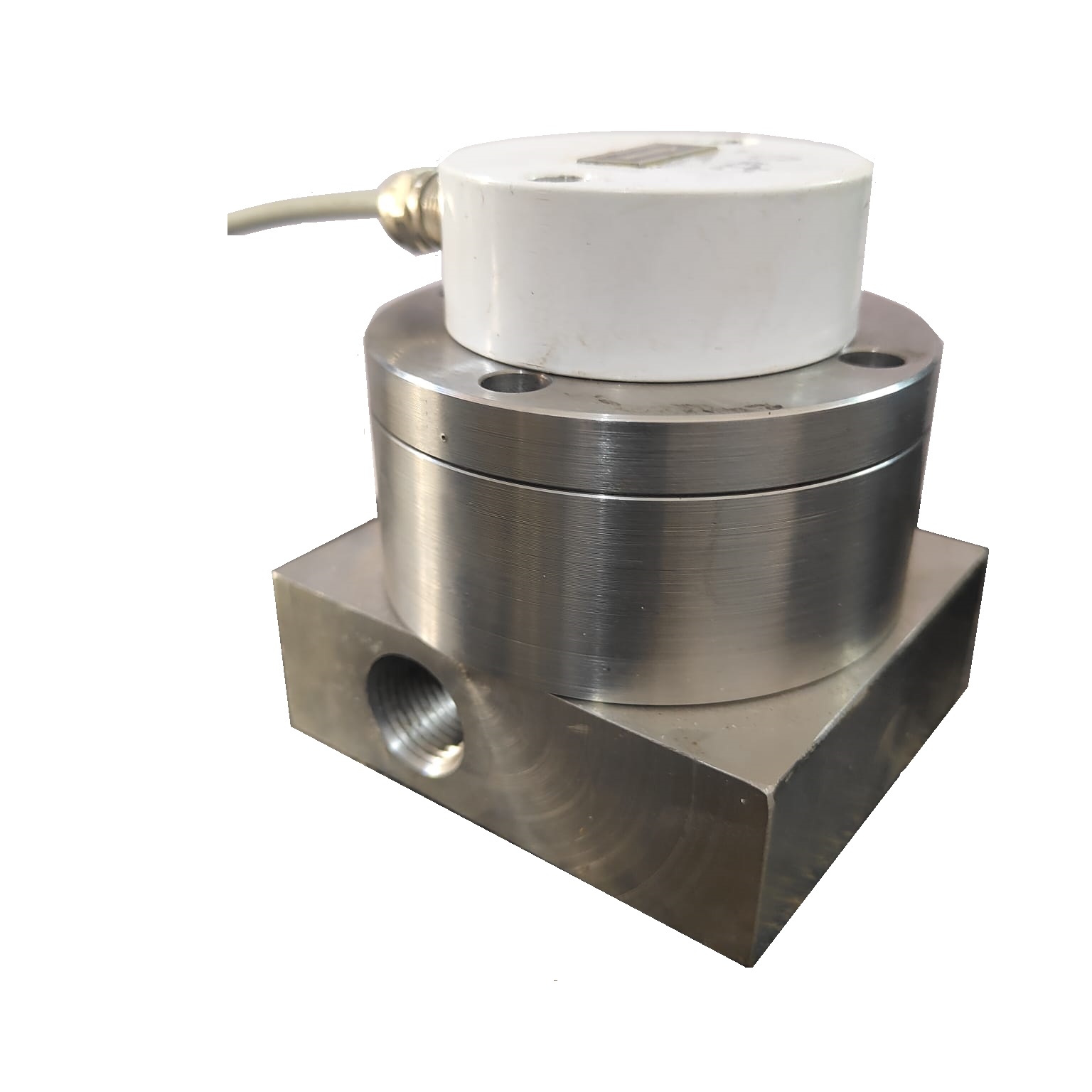

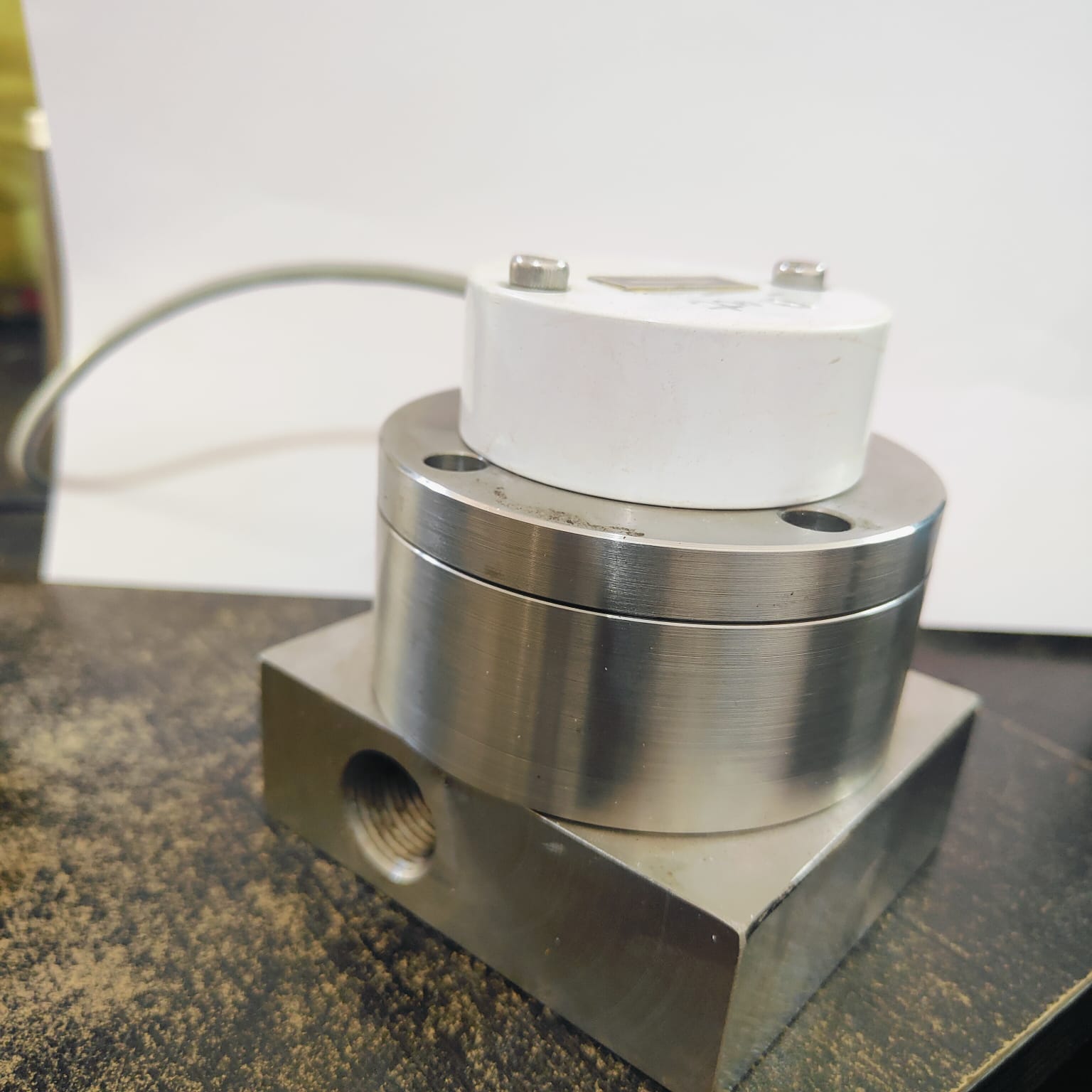

Positive Displacement Flow Meter

The FluidTech P.D Flow Meter are designed to accurately measure and monitor the precise quantities of liquid fuels and solvent, the result is that the meter can measure intermittent flows, very low flow rates, and liquids of almost any viscosity. It gives accurate and precise reading; The LCD with back light display ensures easy readability.

Specifications

Size: DN- 15 (1/2")
Flow Range: 1 – 20 LPM
Accuracy: ±0.25% of Reading
Operating Temp: 90°C Max
Output: Pulse. NPN
Power: 24 V DC From PLC

Key Features

High Accuracy P.D Flow Sensor
LCD Matrix Display
RS485 Serial Modbus Output
Resettable & Cumulative Totalise

Get Enquiry WhatsApp

PD Meters

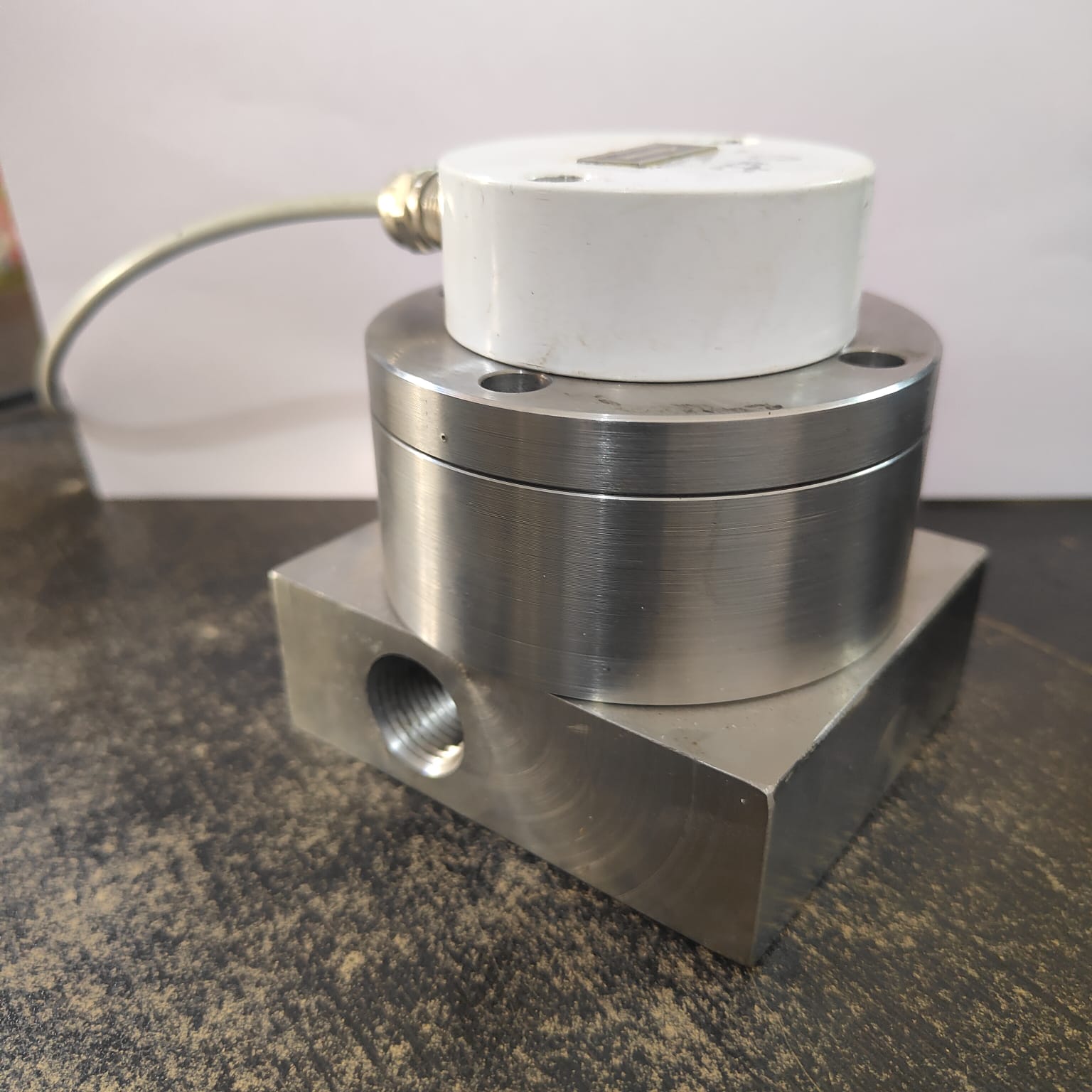

Positive Displacement Flow Meter (3/4")

The Fluid Tech P.D Flow Meter are designed to accurately measure and monitor the precise quantities of liquid fuels and solvent, the result is that the meter can measure intermittent flows, very low flow rates, and liquids of almost any viscosity. It gives accurate and precise reading; The LCD with back light display ensures easy readability.

Specifications

Size: DN- 20 (3/4")
Flow Range: 2 – 35 LPM
Accuracy: ±0.25% of Reading
Max Pressure: 10 Kg/cm²
Operating Temp: 90°C Max
Output: Pulse. NPN

Key Features

High Accuracy P.D Flow Sensor
LCD Matrix Display
RS485 Serial Modbus Output
Resettable & Cumulative Totalise

Get Enquiry WhatsApp

/assest/images/FT2300-25 PD Flow Meter.jpeg

PD Meters

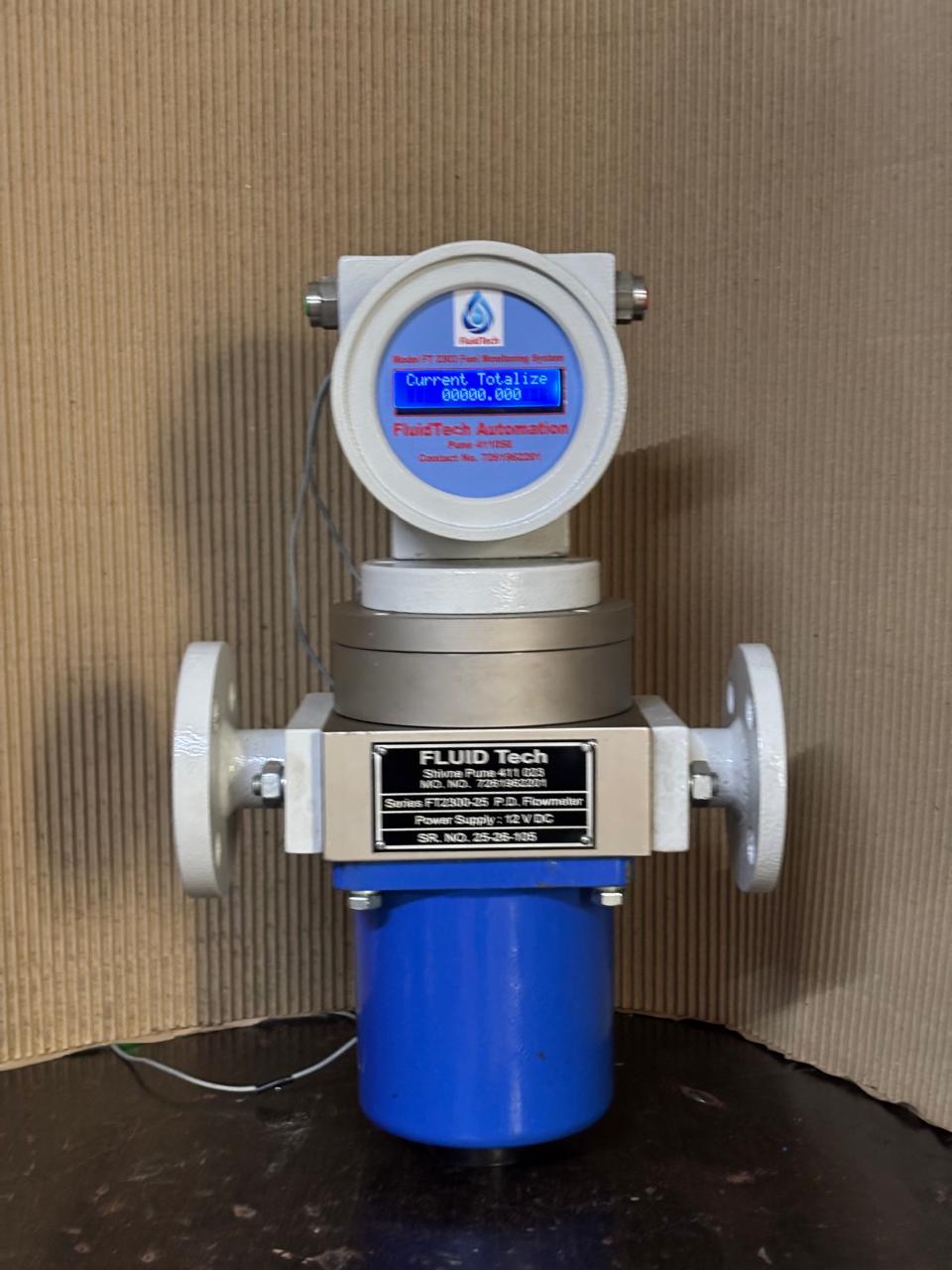

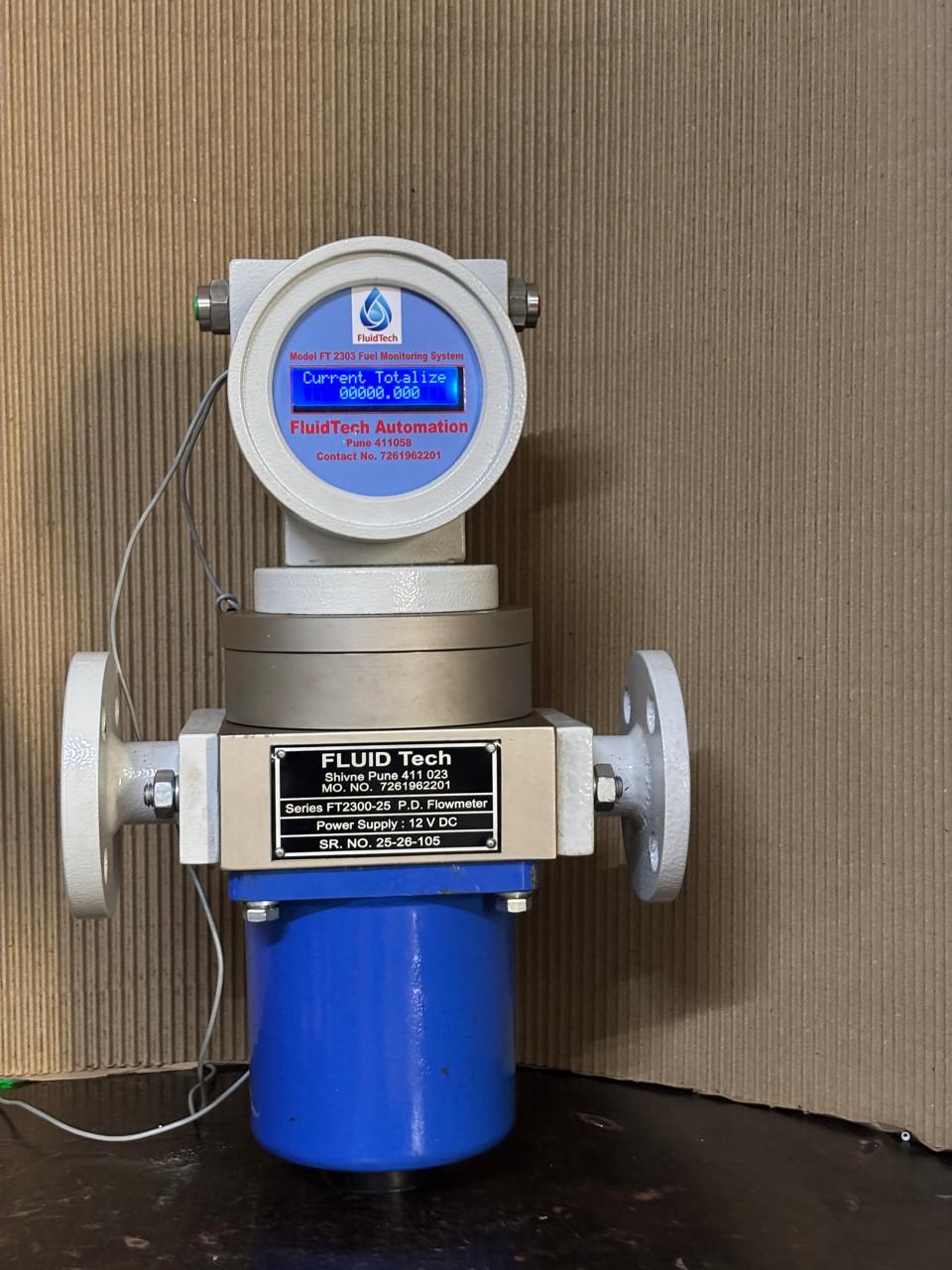

Positive Displacement Flow Meter (1")

The Fluid Tech P.D Flow Meter are designed to accurately measure and monitor the precise quantities of liquid fuels and solvent, the result is that the meter can measure intermittent flows, very low flow rates, and liquids of almost any viscosity. It gives accurate and precise reading; The LCD with back light display ensures easy readability.

Specifications

Size: DN- 25 (1")
Flow Range: 4 – 50 LPM
Accuracy: ±0.1% of Reading
Max Pressure: 20 Kg/cm²
Operating Temp: 90°C Max
Output: Pulse. NPN

Key Features

Flame & Weather-proof Display
High Accuracy P.D Sensor
RS485 Serial Modbus Output
Wide Flow Range Support

Get Enquiry WhatsApp

Dispensing Systems

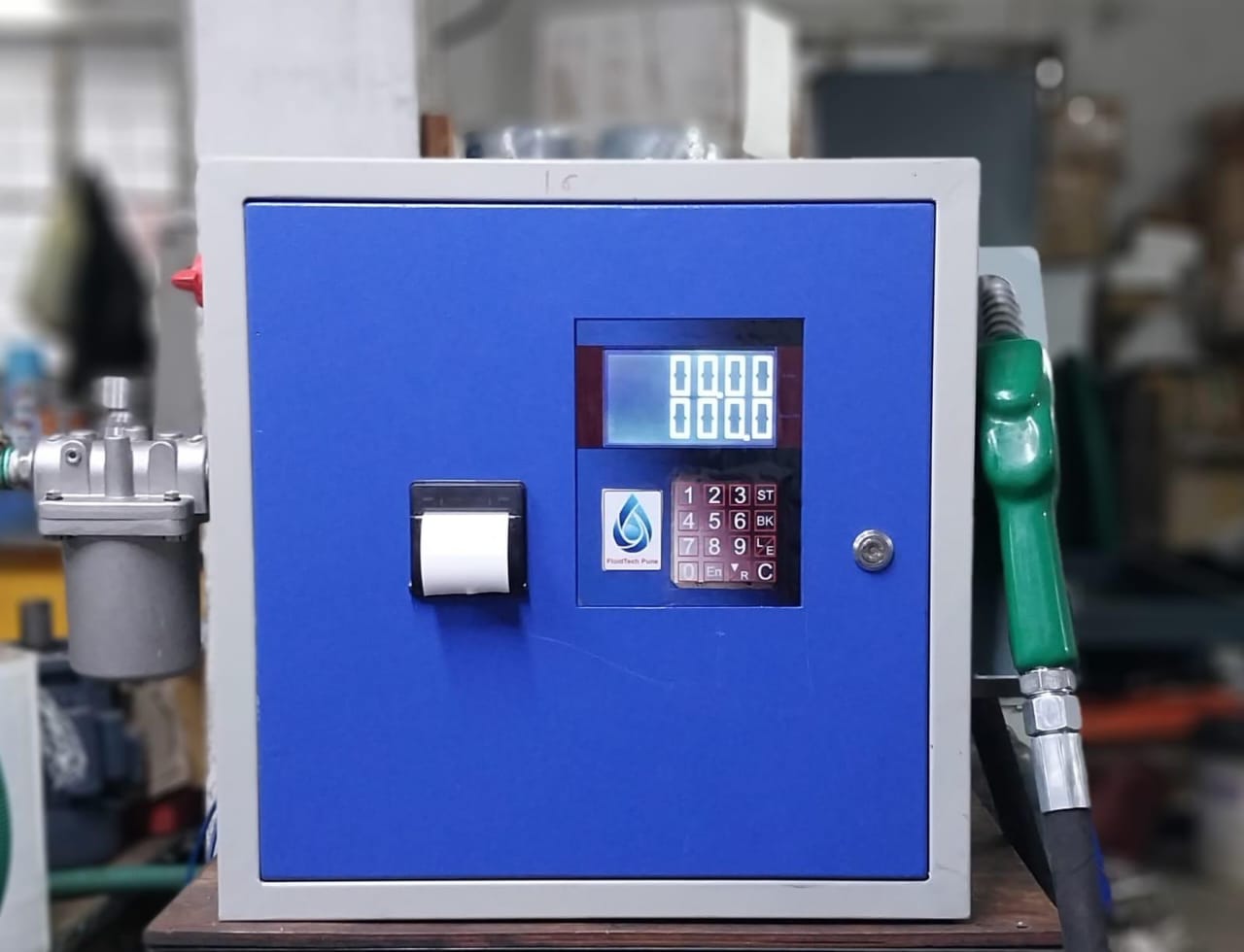

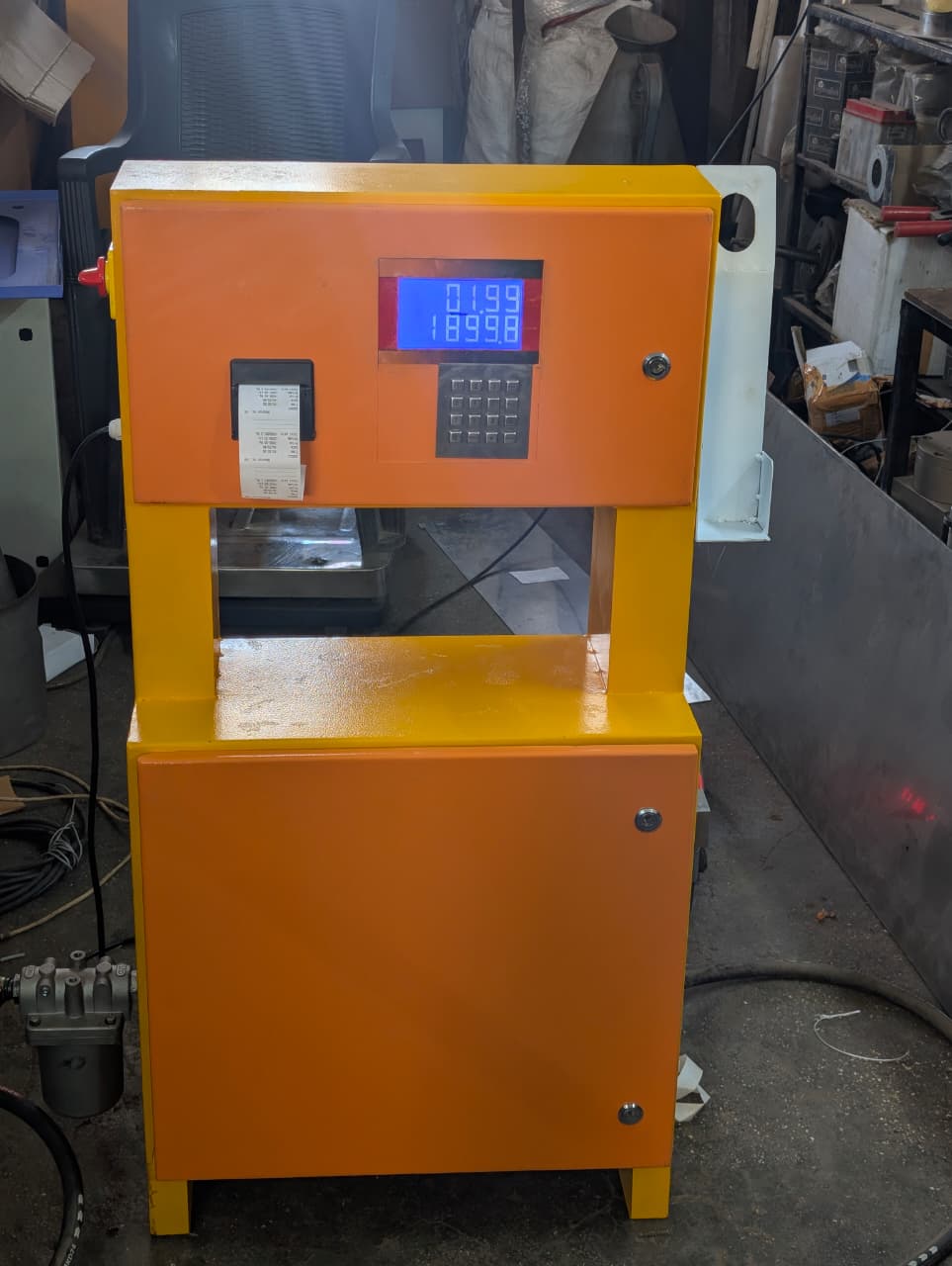

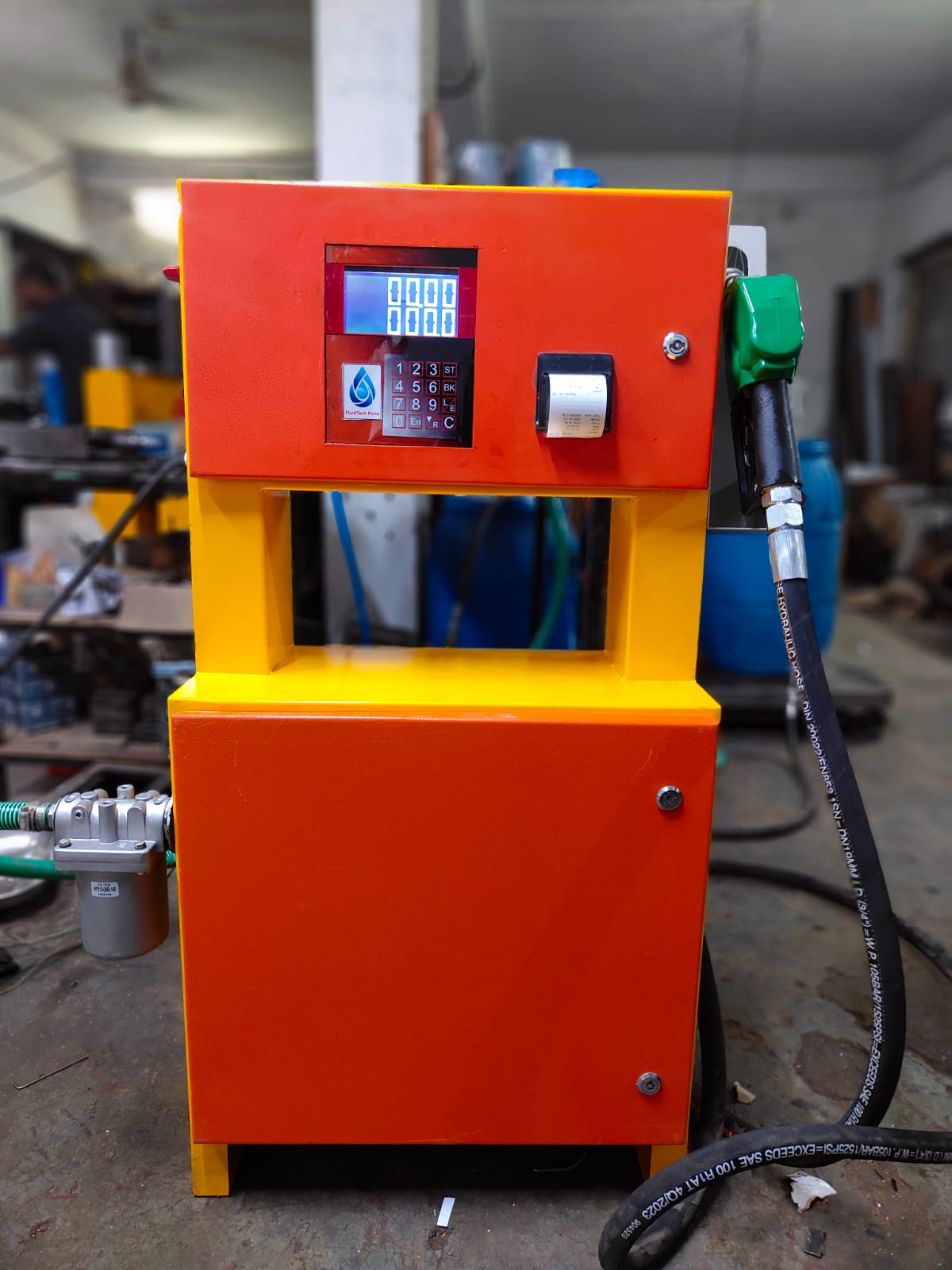

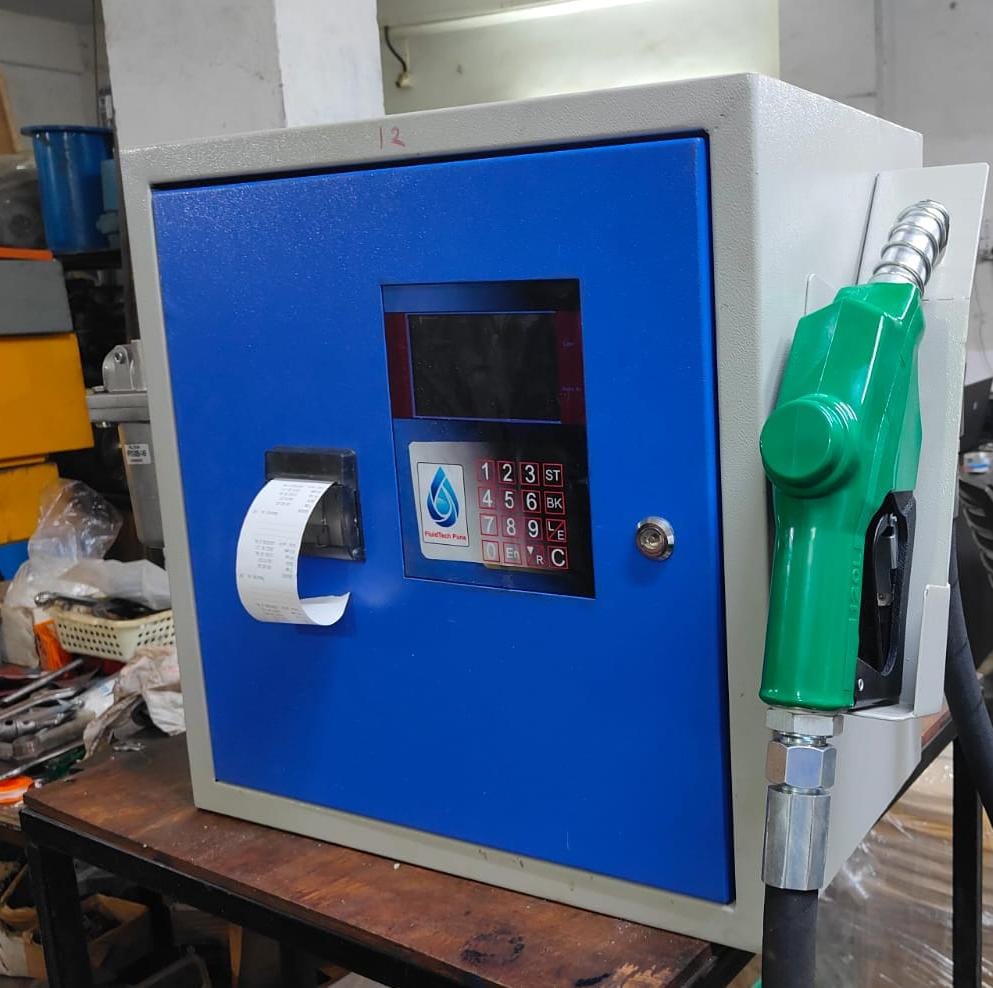

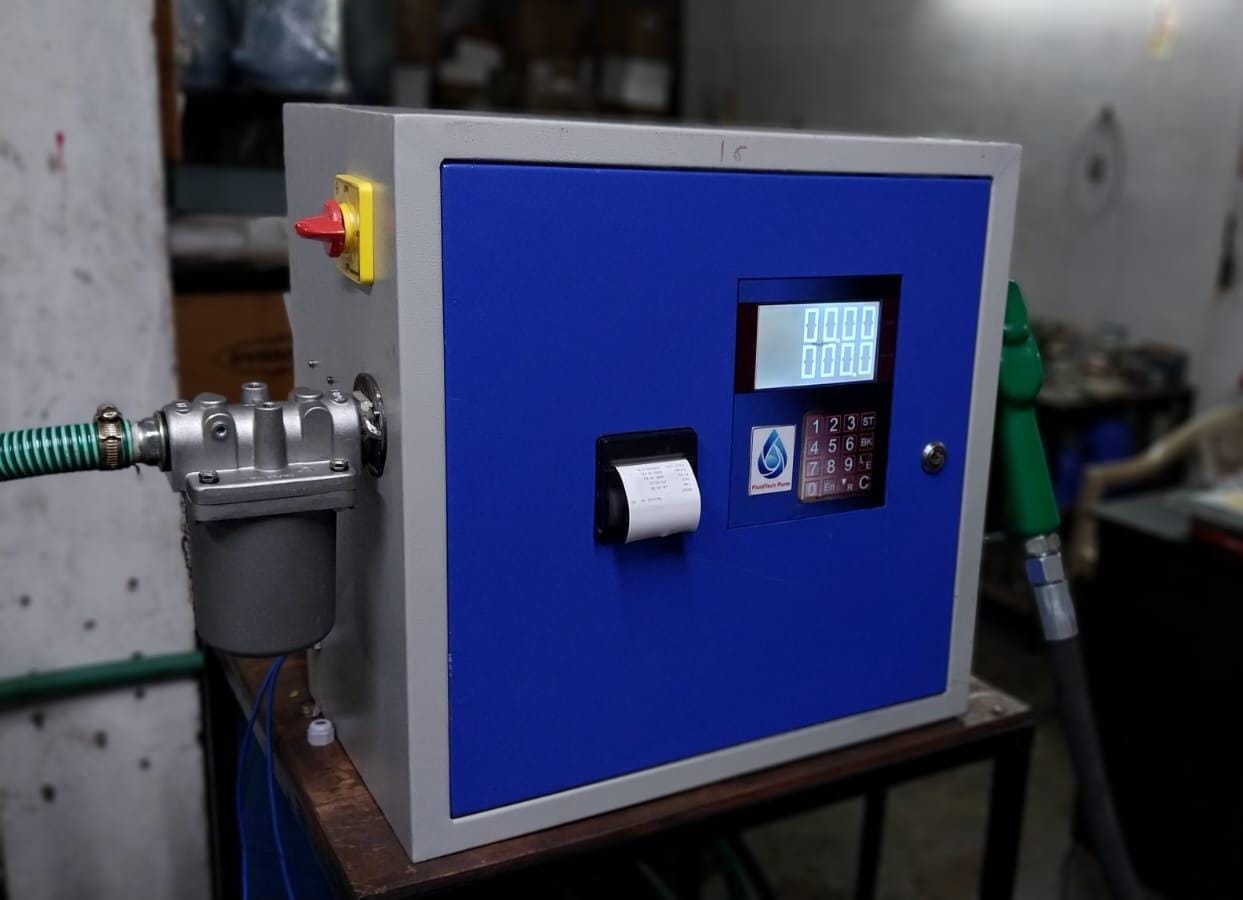

Mobile Fuel Dispensing System

The Fluid Tech Manufactured Mobile Fuel Dispensing System is based on the Time Tested Vane Type Design. An Extremely Reliable for Long Period Operation.

Specifications

Flowrate: 25/45/60/80/100 LPM
Accuracy: ±0.5%
Batch Setting: 1 Ltrs. And Above
Power: 12/24 V DC / 230 V AC 50Hz
Display: Set/Delivered Ltrs, Rupees, Totalizer, Print Option
Cp / Cpk: 1.66 Power

Key Features

Plug & Play Machine
Auto Shut-off Nozzle
High Accuracy P.D Flow Sensor
Removable 149 Micron Filter
Resettable Batch & Totaliser
Needless Maintenance

Get Enquiry WhatsApp

Dispensing Systems

Automated Fuel Dispensing System ( 40-80 LPM)

A high-performance plug-and-play dispensing machine featuring a high-capacity pump and auto shut-off nozzle. Designed for effortless operation with a 40 LPM flow rate and requiring absolutely no complicated wiring.

Specifications

Flow rate: 40 LPM
Accuracy: ±0.5%
Batch Setting: 1 Ltrs. And Above
Power Supply: 230 V AC 50 Hz
Display: Set/Delivered Ltrs, Rupees, Totalizer, Print Option
Cp/Cpk: 1.66 Power

Key Features

High Capacity Pump
Plug & Play Machine
Auto Shut-off Nozzle
High Accuracy P.D Flow Sensor
Built-in 149 Micron Removable Filter
Resettable Batch & Cumulative Totaliser

Get Enquiry WhatsApp

PD Meters

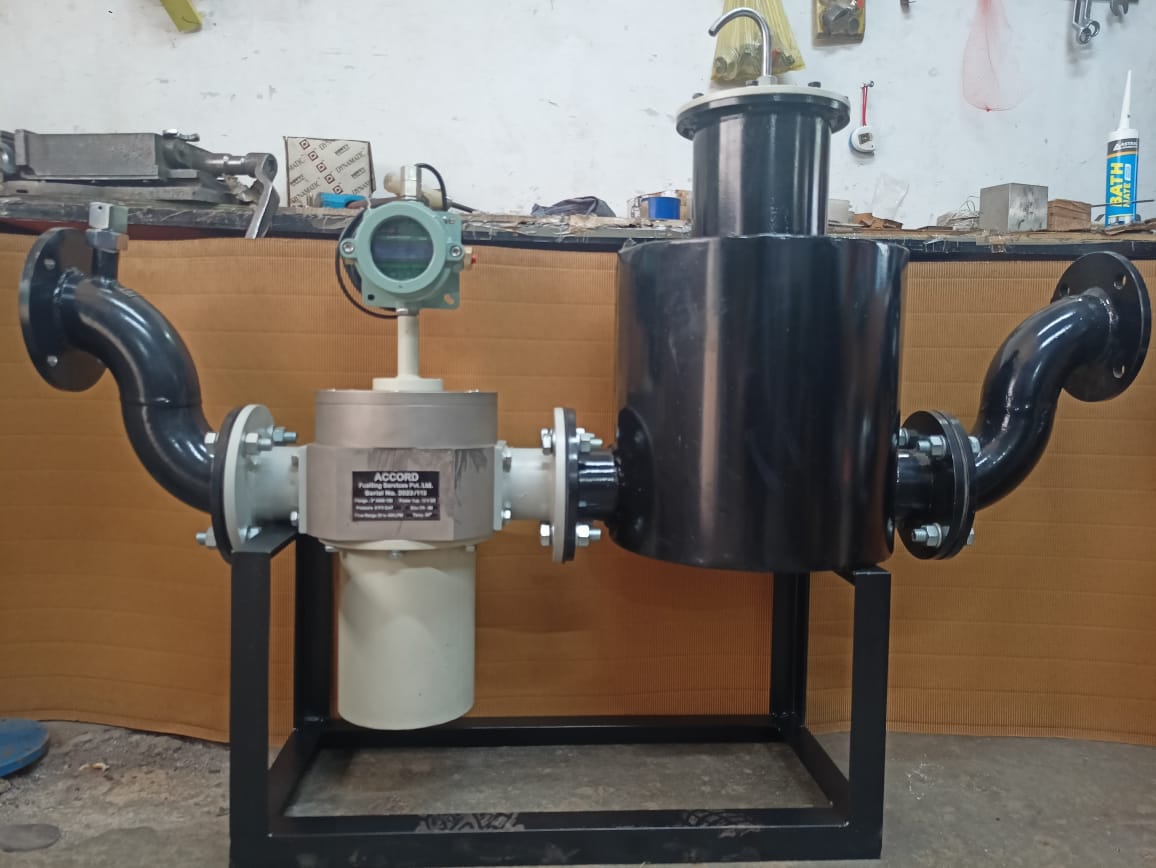

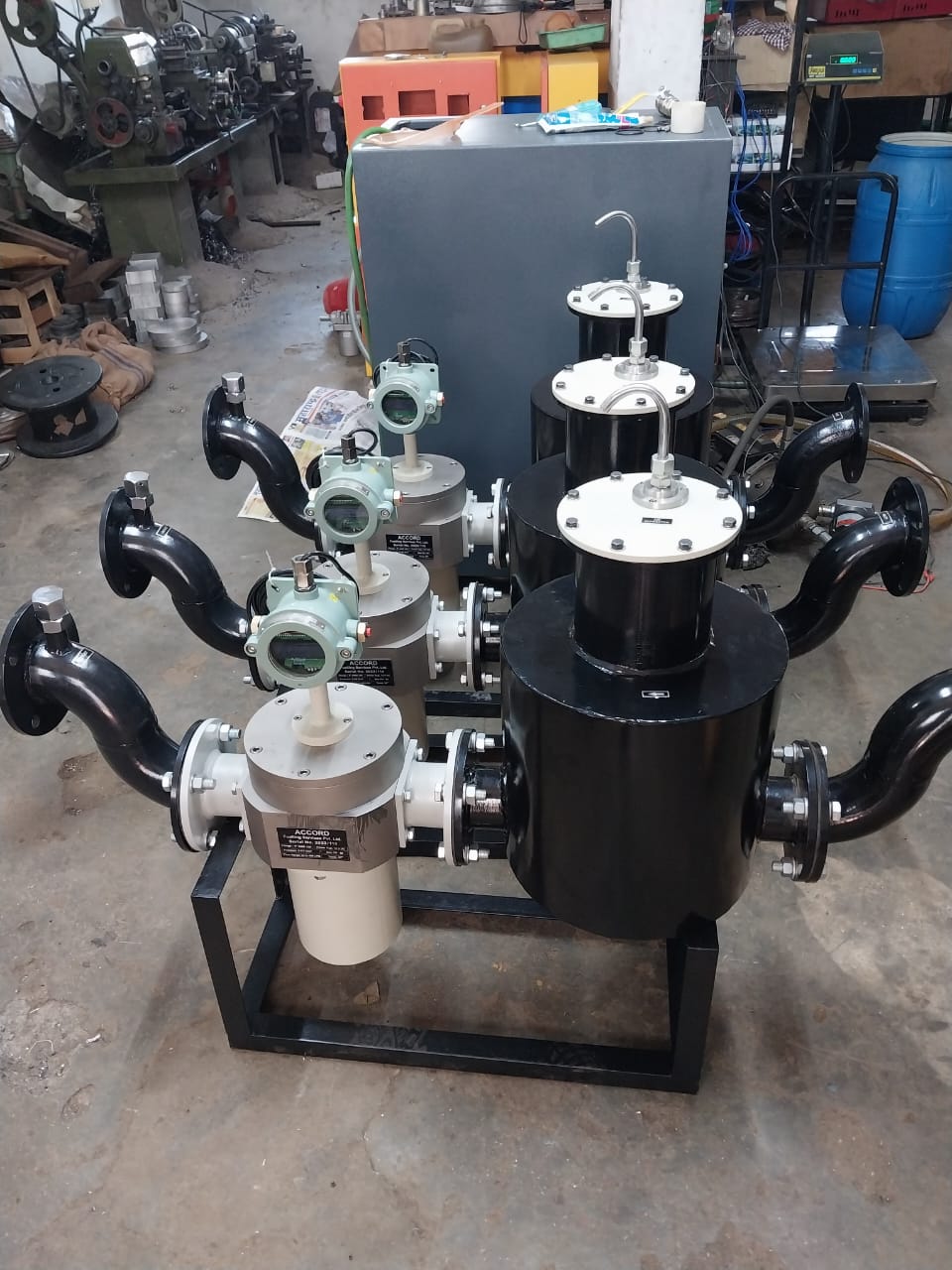

Tanker Unloading System

The Fluid Tech Tanker Unloading System are designed to accurately measure and monitor the precise quantities of liquid fuels and solvents that are unloaded from tankers into underground storage tanks. It gives accurate and precise reading; it has high capacity air separator and control valve for assuring complete air elimination, The LCD with back light display ensures easy readability, the system comes with RS 485 output.

Core Specifications

Size: DN-50 (2") ANSI 150 Flanged
Flow Range: 1200 – 12000 LPH
Accuracy: ±0.25% of Reading
Pressure / Temp: 6 Kg/cm² Max / 80°C Max
Filtration: Inbuilt 149 Micron Steiner
Power Supply: AC 230 V 50 Hz

Advanced Components

Flameproof Display: Mounted LCD Backlight
Multi-Readout: Totalizer, Flow Rate & Hours
Air Separator: Built-in MS Fabricated & Coated
Premium Valves: Double Acting with S.S 316 Float
Output: Pulse Output Ready

Get Enquiry WhatsApp

PD Meters

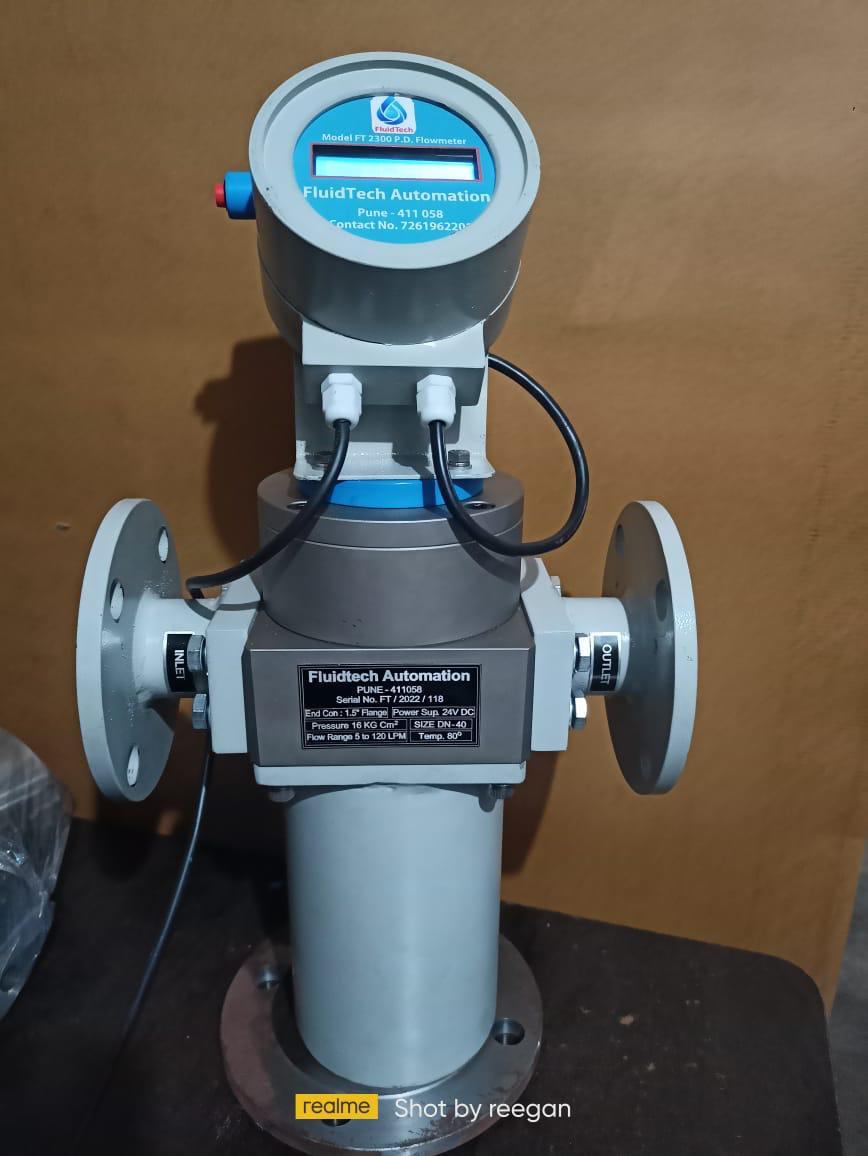

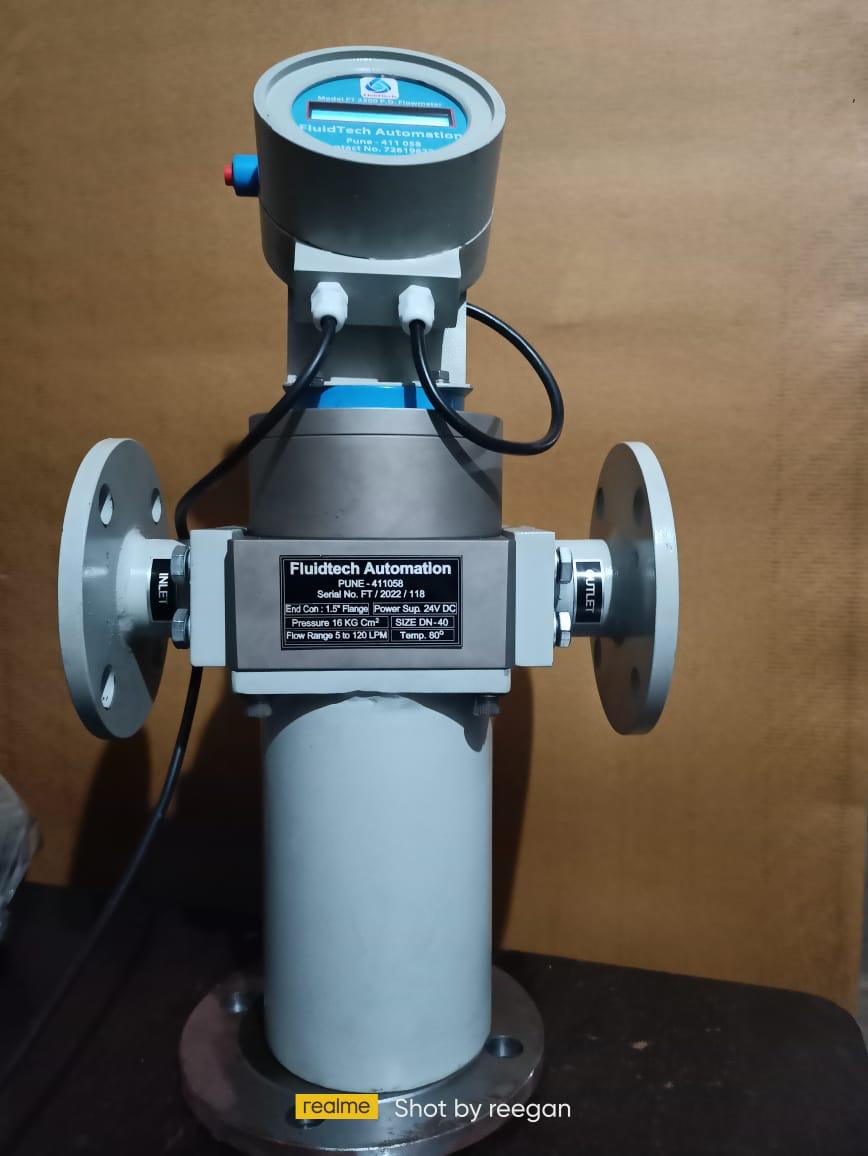

Positive Displacement Flow Meter (DN-40)

The Fluid Tech P.D Flow Meter are designed to accurately measure and monitor the precise quantities of liquid fuels and solvent, the result is that the meter can measure intermittent flows, very low flow rates, and liquids of almost any viscosity. It gives accurate and precise reading; The LCD with back light display ensures easy readability.

Specifications

Size: DN- 40 (1/2 - 1")
Flow Range: 4 – 80 LPM
Accuracy: ±0.25% of Reading
Pressure / Temp: 1 Kg/cm² Max / 80°C Max
End Connection: Adaptor (3/4" & 1" Nozzle Suitable)
Mounting: On Flange

Key Features

Flame & Weather-proof Display
High Accuracy P.D Sensor
LCD Matrix Display
RS485 Serial Modbus Output
Resettable & Cumulative Totalise

Get Enquiry WhatsApp

PD Meters

Vane Type Positive Displacement Flowmeter (1-1/2")

The FluidTech Manufactured Positive Displacement Flowmeters are based on the time tested Vane type design. A Extremely reliable for long period of operation.

Specifications

Size / Model: DN-40 (1-1/2")
Flow Range: 600 – 6000 LPH
Accuracy: ±0.25%
MOC: Aluminum / Stainless Steel
Max Press / Temp: 10 kg/cm² / 90°C
End Connection: 1-1/2" ANSI 150 Std Flange
Power Supply: 230 V AC / 12 V DC

Design Features

No Straight Pipe Lengths Required
Zero Effect from Pipeline Vibration
Ideal for Batching Applications
Zero Warm-Up Time Required
6-Digit Remote/Mounted LED Display
Built-in 149 Micron Filtration

Get Enquiry WhatsApp

PD Meters

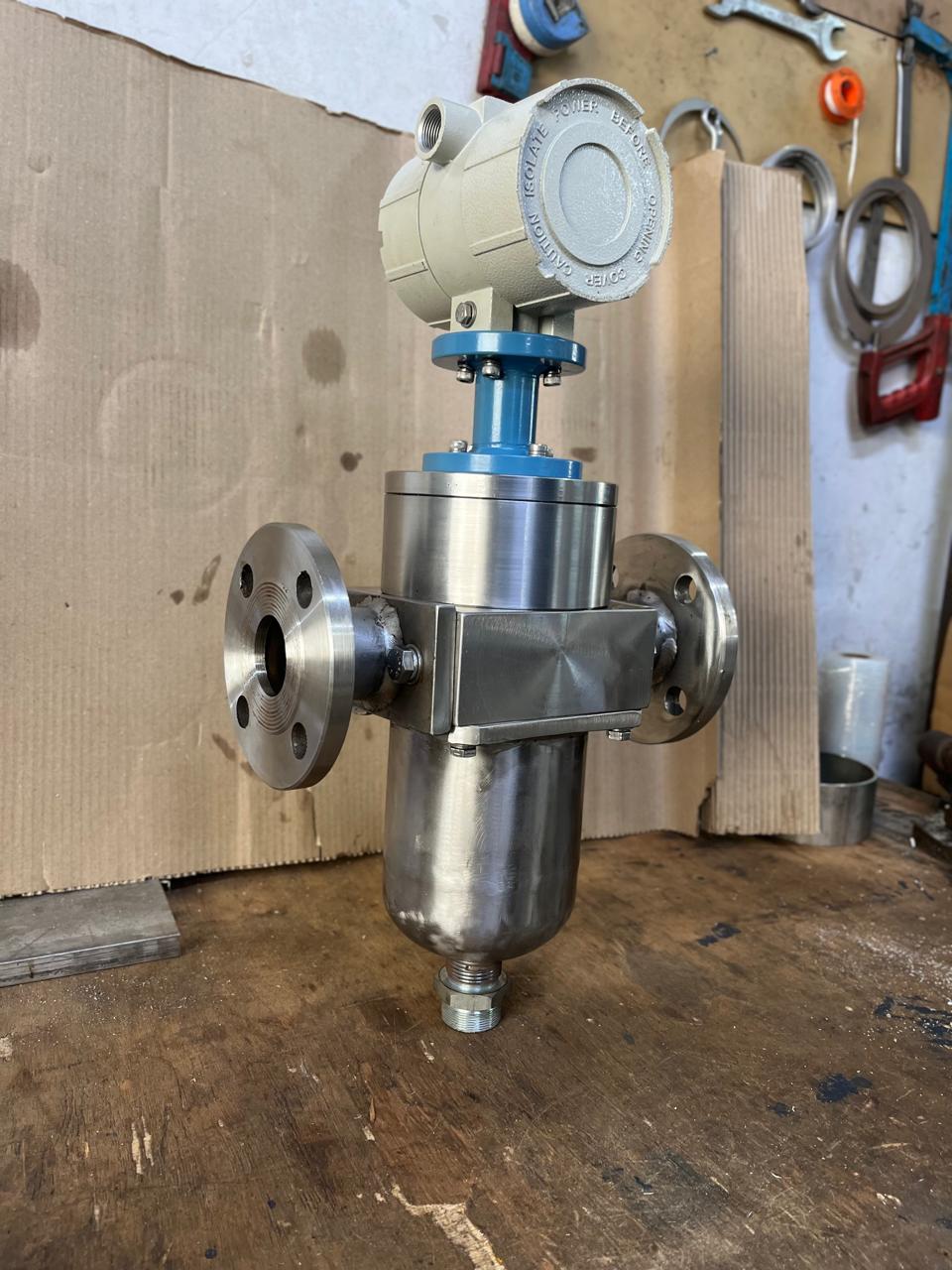

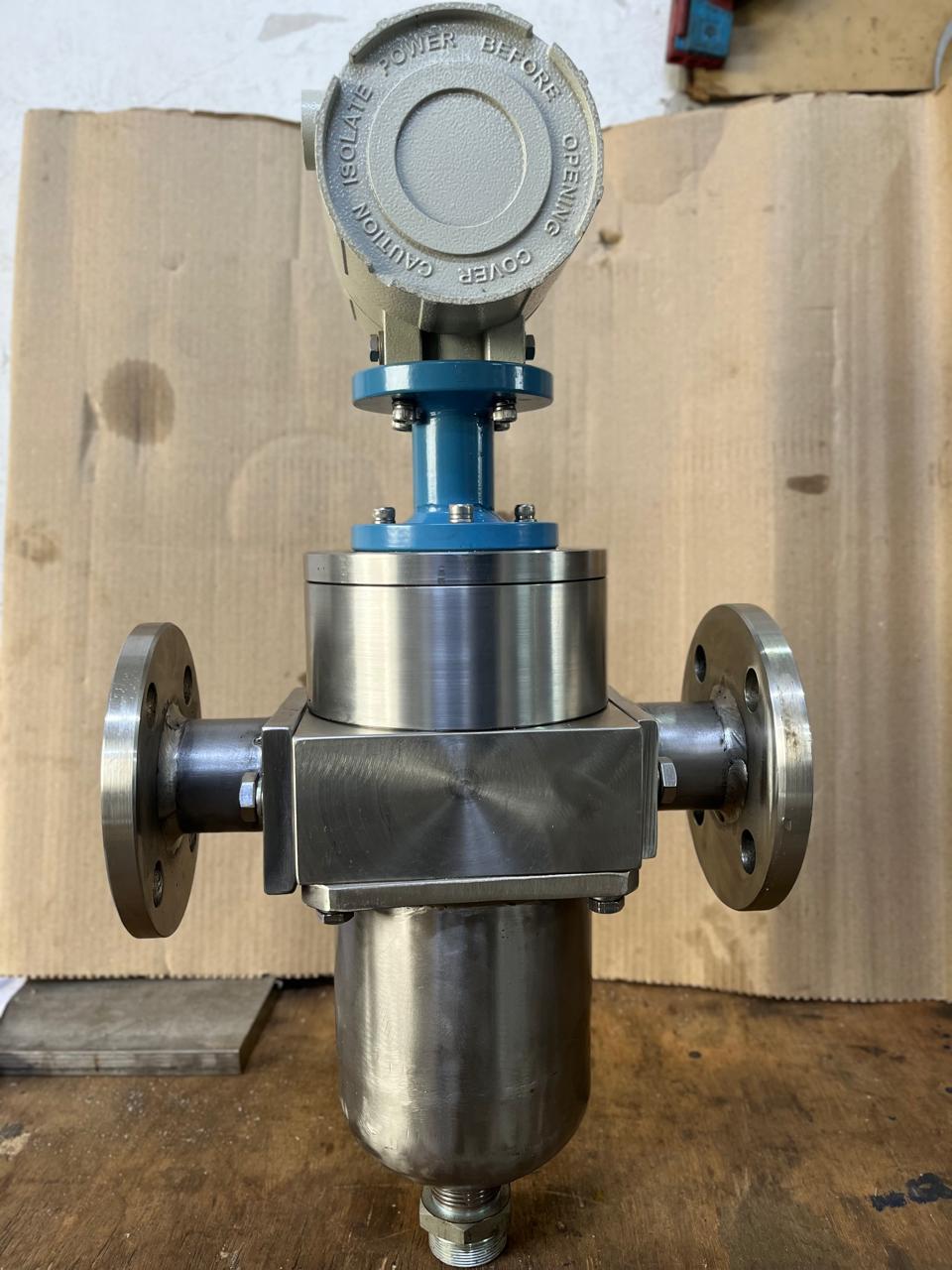

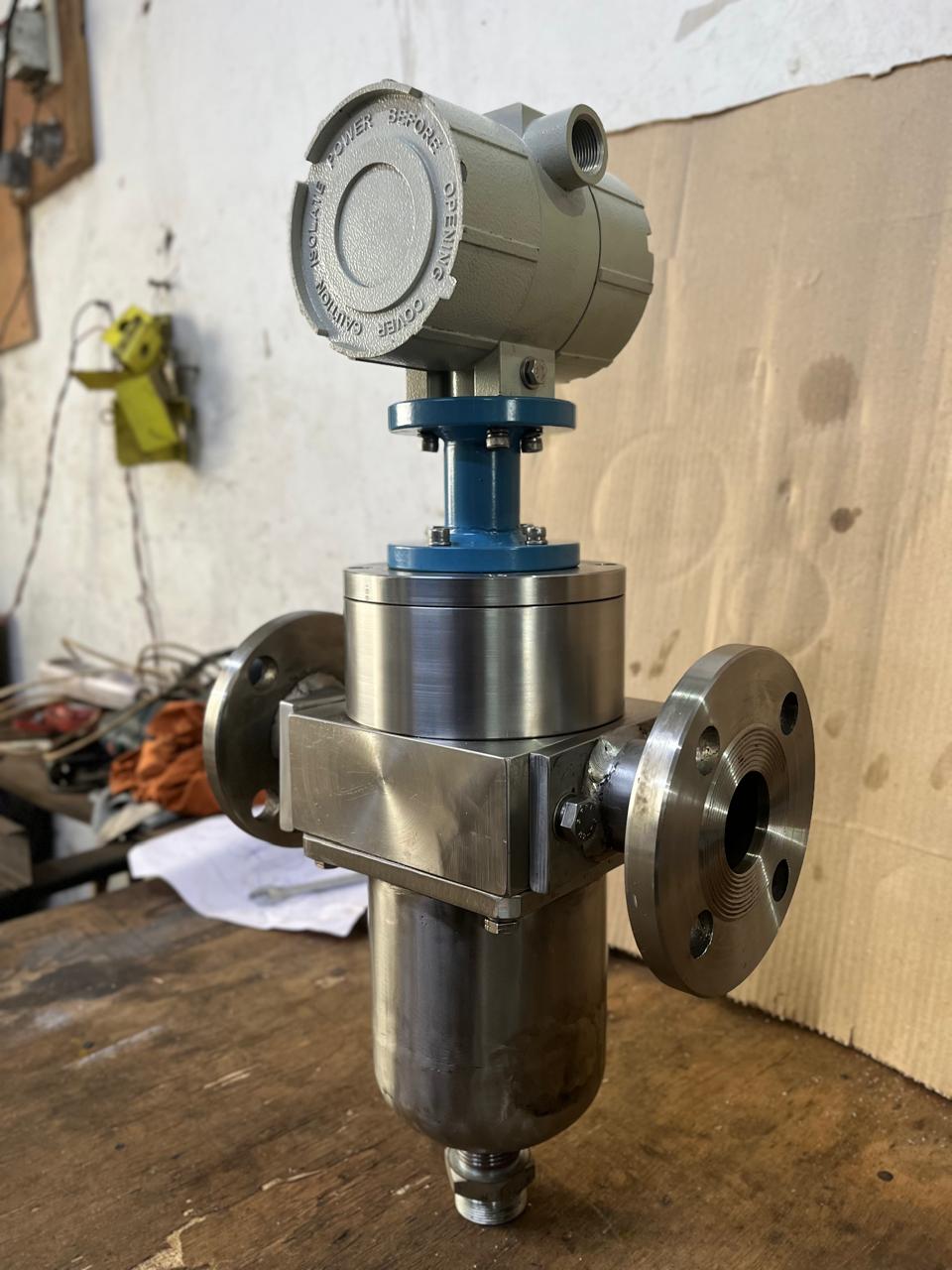

Positive Displacement Flow Meter (2")

The Fluid Tech P.D Flow Meter are designed to accurately measure and monitor the precise quantities of liquid fuels and solvent, the result is that the meter can measure intermittent flows, very low flow rates, and liquids of almost any viscosity. It gives accurate and precise reading; The LCD with back light display ensures easy readability.

Specifications

Size: DN- 50 (2") 2" BSPF
Flow Range: 20 – 200 LPM
Accuracy: ±0.1% of Reading
MOC: Aluminium (ENP) / SS 304 / SS 316
Max Press / Temp: 20 Kg/cm² / 90°C
Power: 230 V AC / 12 V DC

Key Features

Flame & Weather-proof Enclosures
High Accuracy P.D Sensor
LCD Matrix Display
RS485 Serial Modbus Output
Resettable & Cumulative Totalise

Get Enquiry WhatsApp

PD Meters

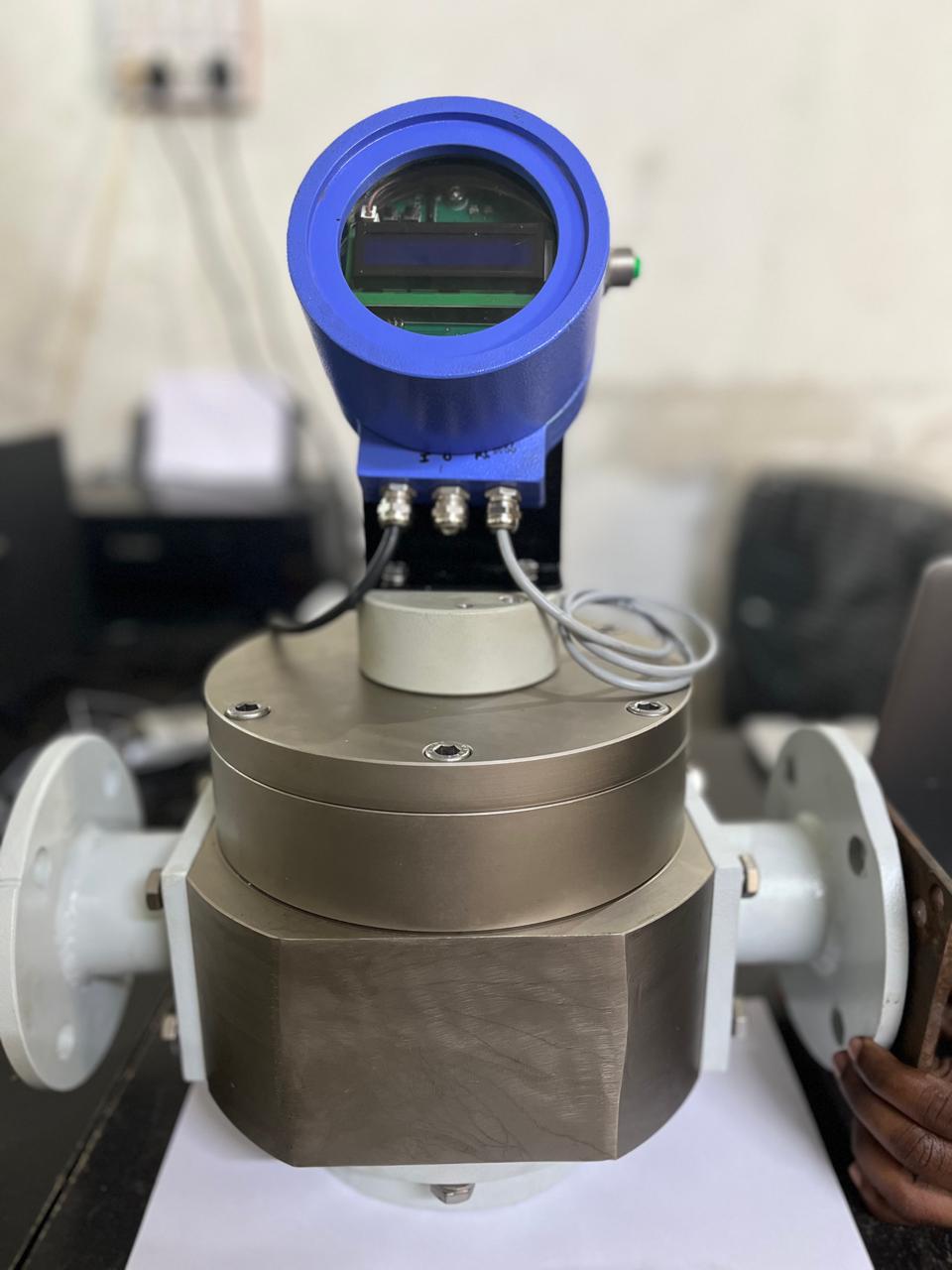

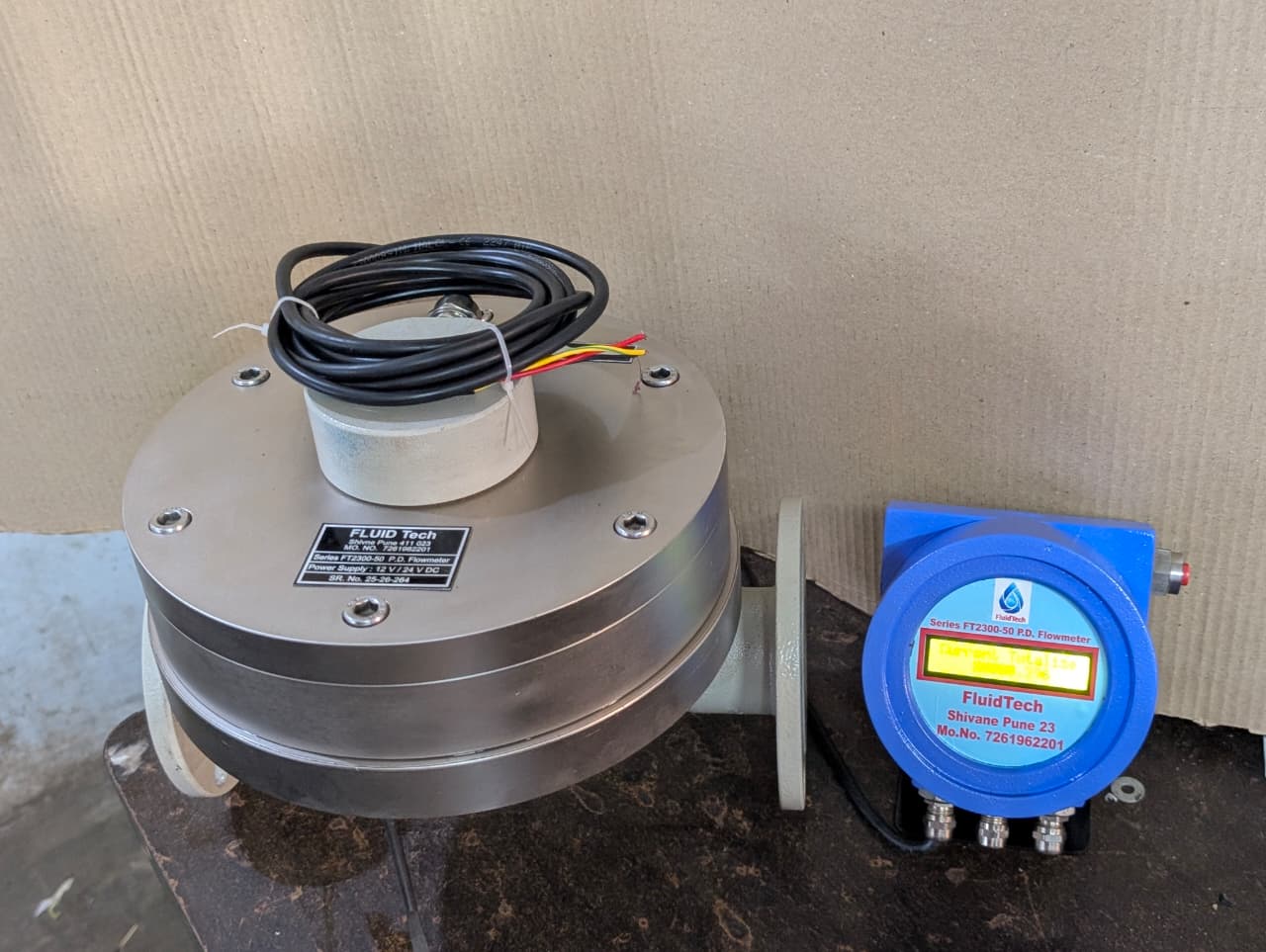

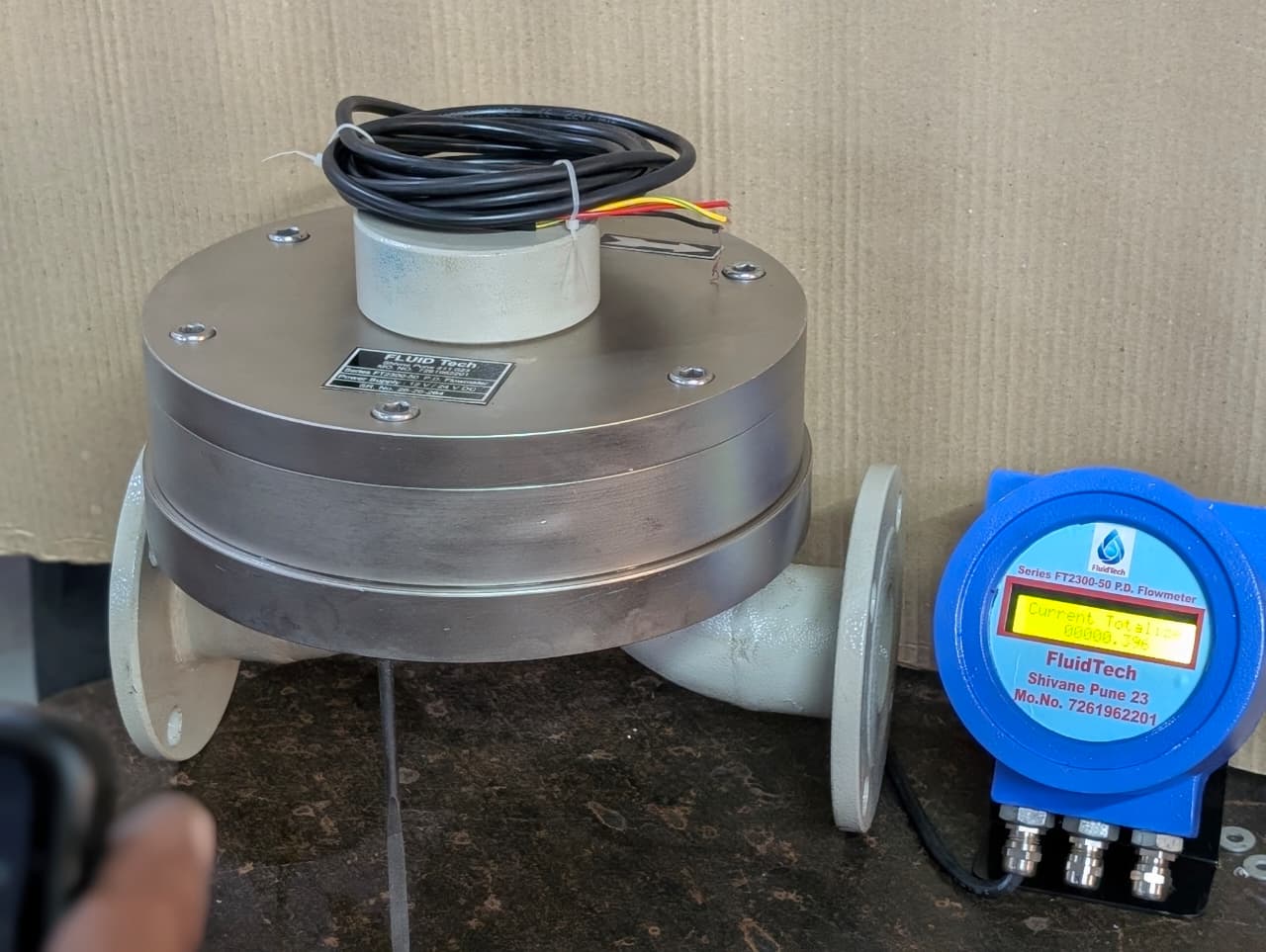

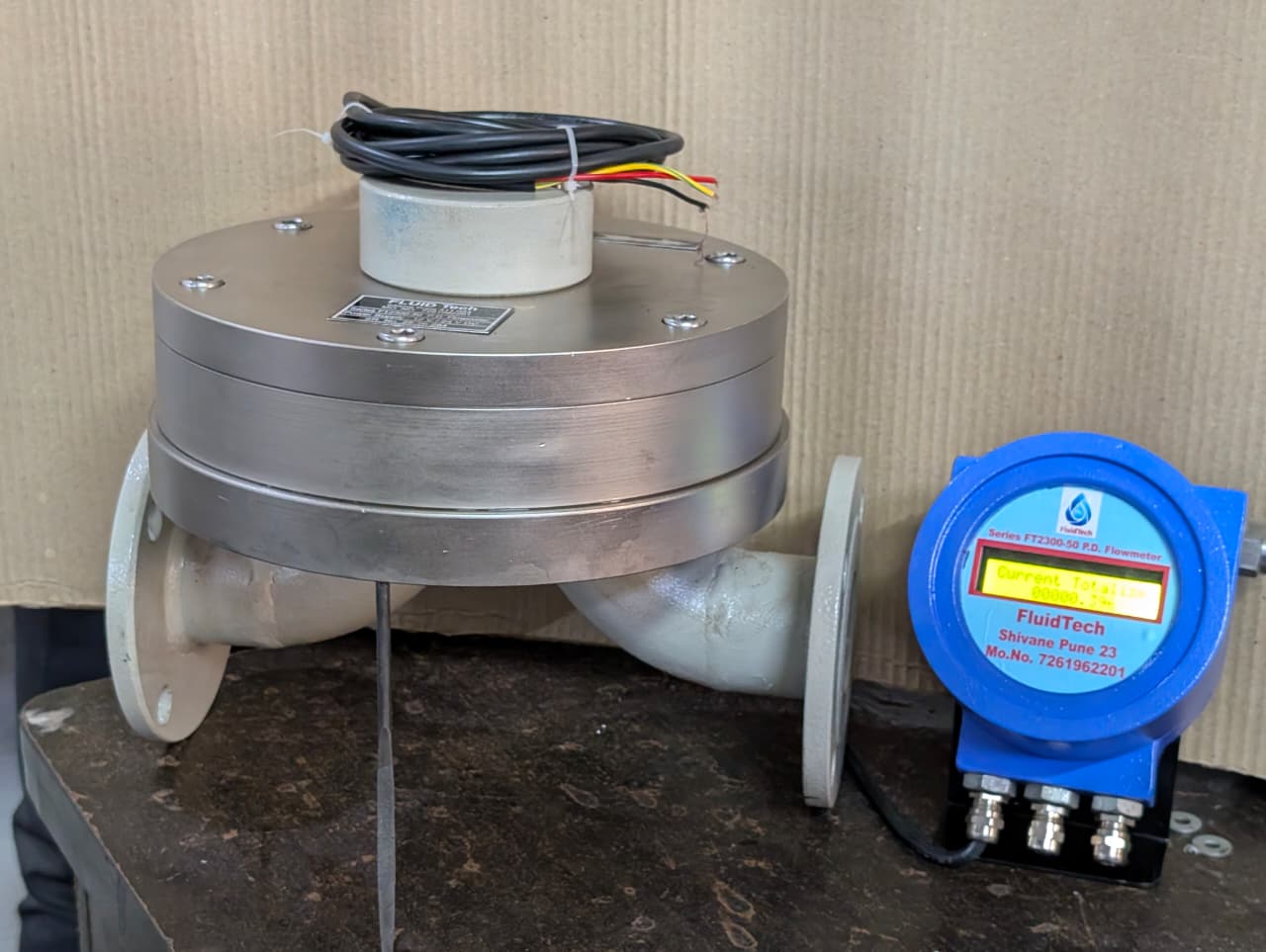

Positive Displacement Flow Meter (3")

The Fluid Tech P.D Flow Meter are designed to accurately measure and monitor the precise quantities of liquid fuels and solvent, the result is that the meter can measure intermittent flows, very low flow rates, and liquids of almost any viscosity. It gives accurate and precise reading; The LCD with back light display ensures easy readability.

Specifications

Size: DN- 80 (3") 3" BSPF
Flow Range: 40 – 400 LPM
Accuracy: ±0.1% of Reading
MOC: Aluminium (ENP) / SS 304 / SS 316
Max Press / Temp: 20 Kg/cm² / 90°C
Power: 230 V AC / 12 V DC

Key Features

Wide Range: 2400 to 24000 LPH
Flame & Weather-proof Enclosures
High Accuracy P.D Sensor
LCD Matrix Display
RS485 Serial Modbus Output

Get Enquiry WhatsApp

Dispensing Systems

High-Speed Dispensing Unit (120 LPM)

A lightweight, user-friendly dispensing unit designed specifically for oil and diesel applications. Features an adjustable high-speed flow rate, an eye-catching design, and a self-priming motor for highly efficient, maintenance-free operation.

Specifications

Flowrate: 120 LPM Adjustable
Accuracy: ± 05 ML
Application: Oil, Diesel
Material: MS / SS
Motor: AC / DC Motor
Power Supply: 230V AC / 12V DC

Key Features

Motor with Self-Prime Pump
Lightweight & Easily Shiftable
User-Friendly & Easy to Operate
Unique, Eye-Catching Design
Needless Maintenance
Highly Efficient Operation

Get Enquiry WhatsApp

Fuel Tracking Systems

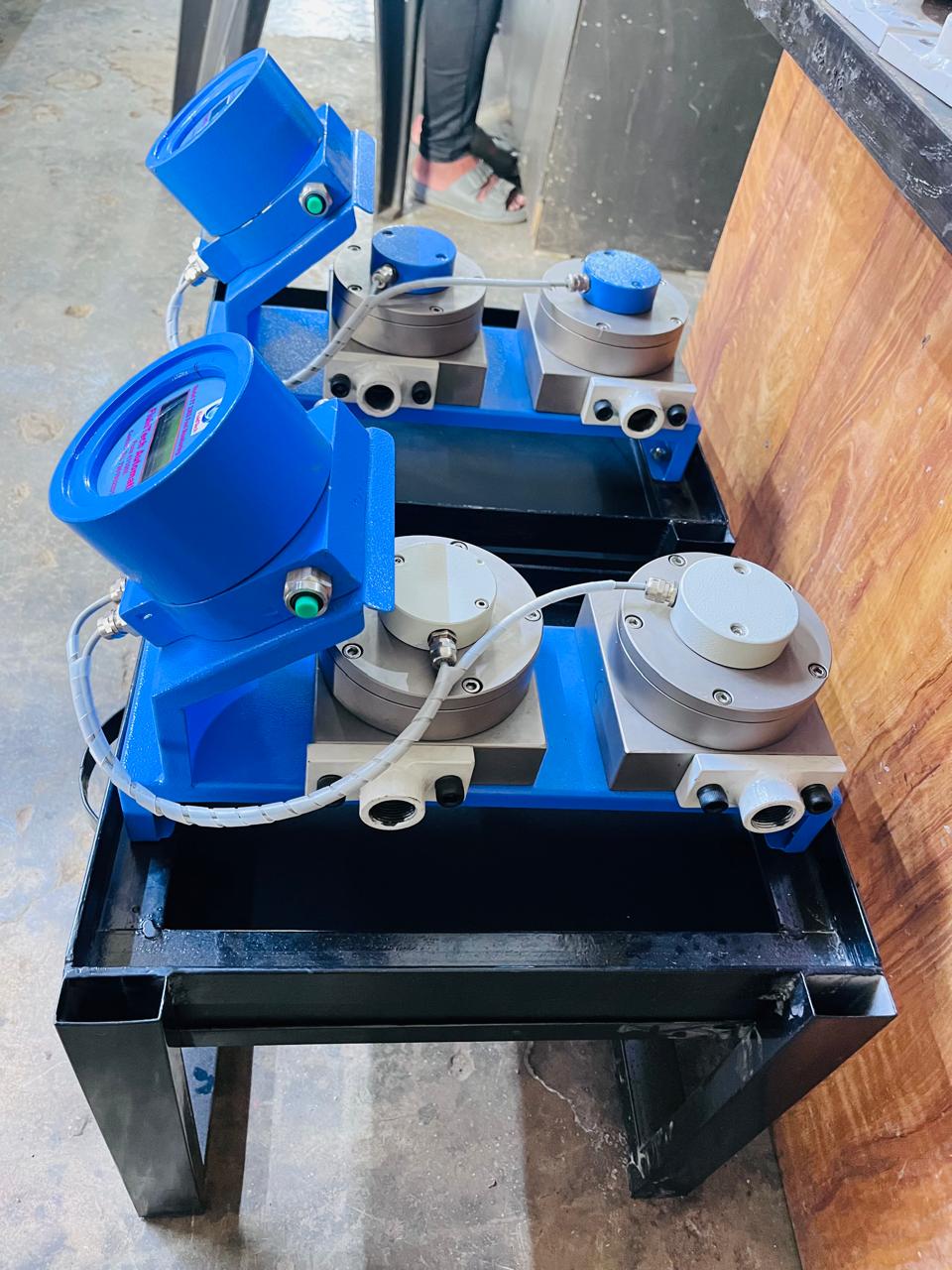

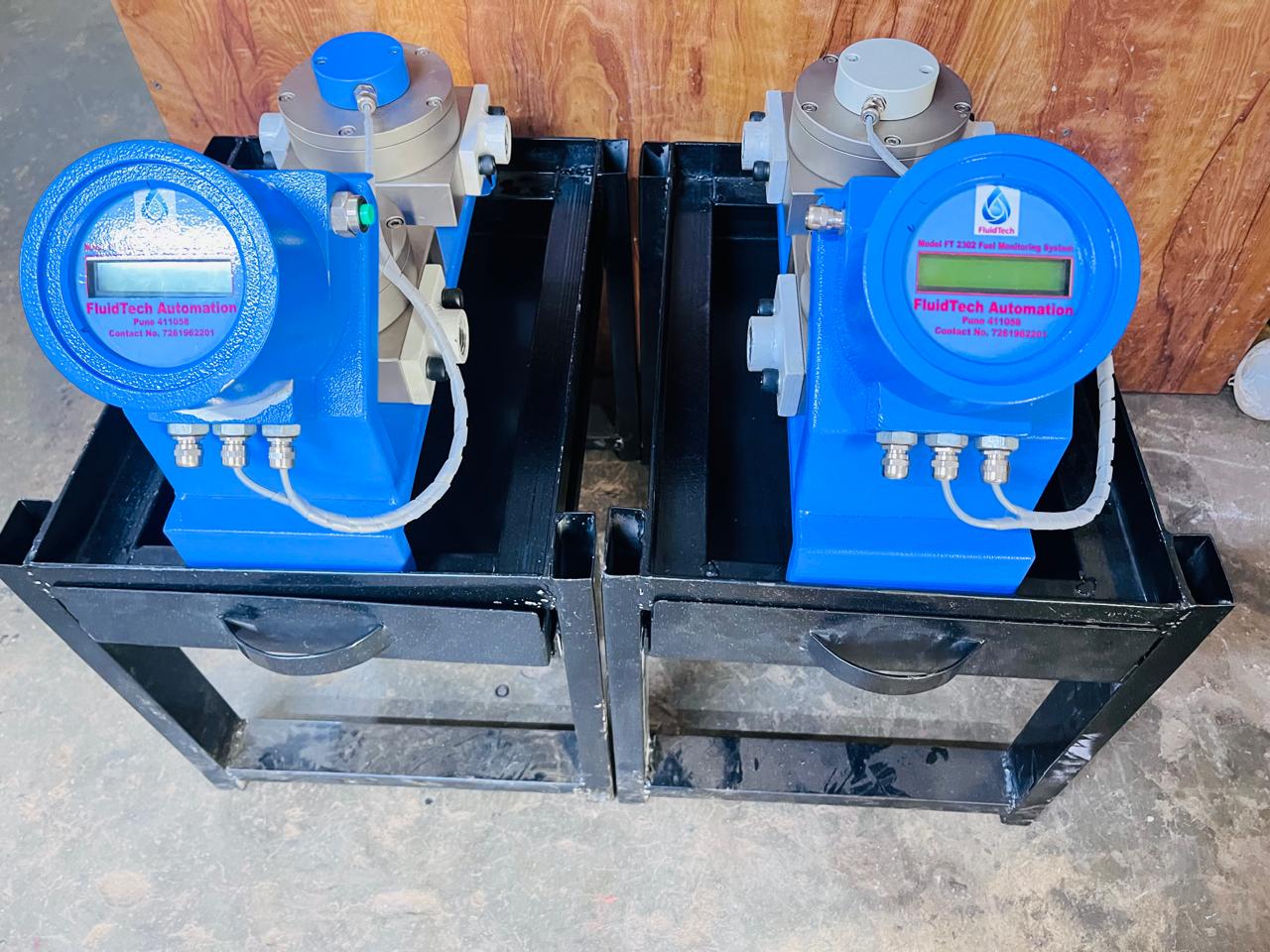

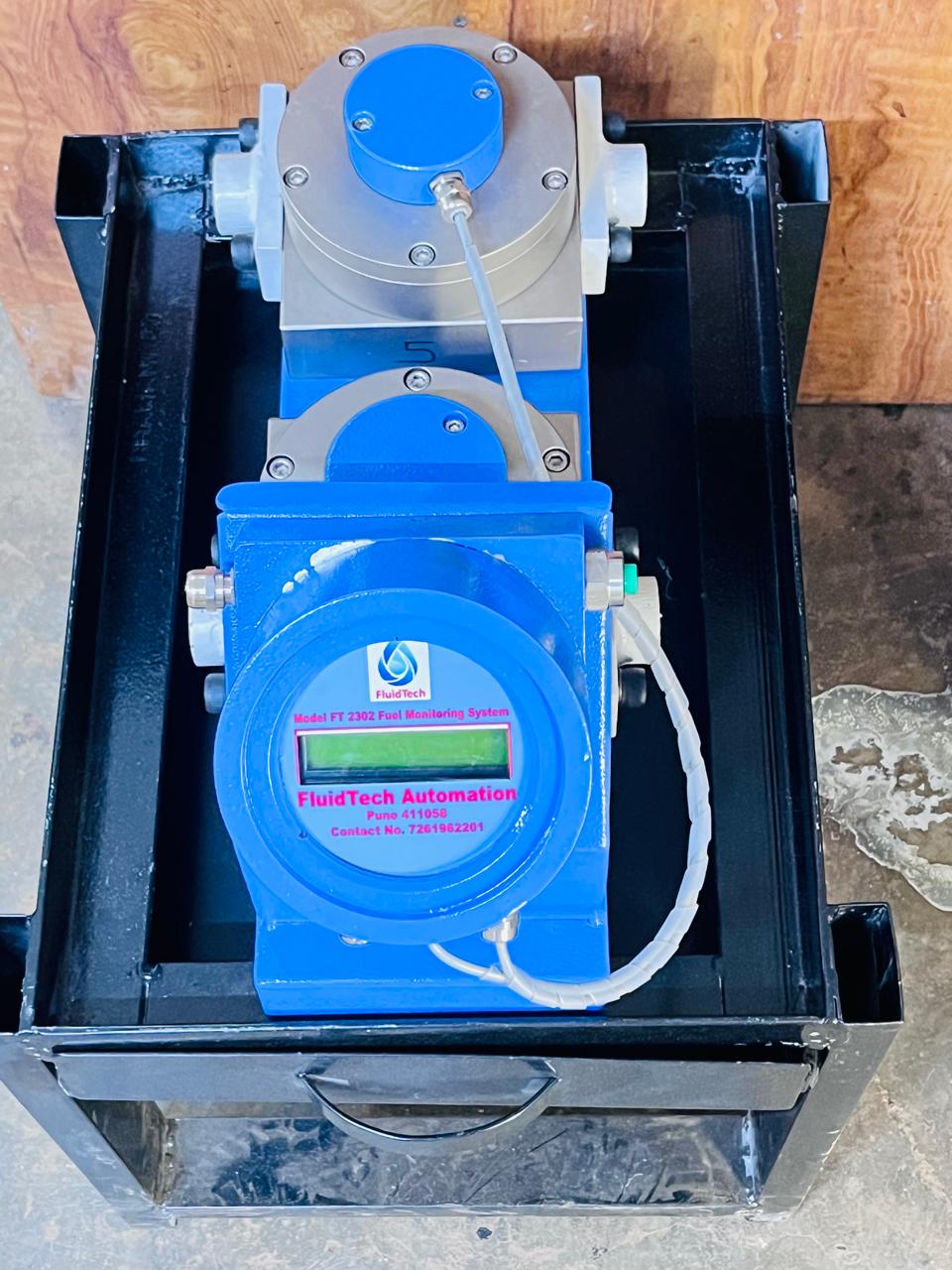

Diesel Fuel Consumption Meter (DN-4 to DN-25)

An advanced oval gear positive displacement flow meter designed specifically for precise diesel tracking. It automatically computes exact net fuel consumption from supply and return measurements, making it perfect for vehicle, DG set, and fleet management integration.

Specifications

Size: DN- 4 to DN- 25 BSP(F)
Flow Range: 5 – 400 LPH
Accuracy: ±0.5% of Reading
MOC: Aluminium (ENP) / SS 304 / SS 316
Max Press / Temp: 16 Kg/cm² / 80°C
Power Supply: 12 V DC (Direct Battery Compatible)
Communication: RS485 Modbus RTU & Pulse NPN

Key Benefits

Computes Net Fuel Consumption (In/Out)
4-Parameter LCD (In, Out, Use, Stock)
SCADA & Fleet Management Ready
Weatherproof Industrial Enclosure
Flow Unit Adjustment via Keypad
Proven Oval Gear Mechanism

Get Enquiry WhatsApp

Filling Machines

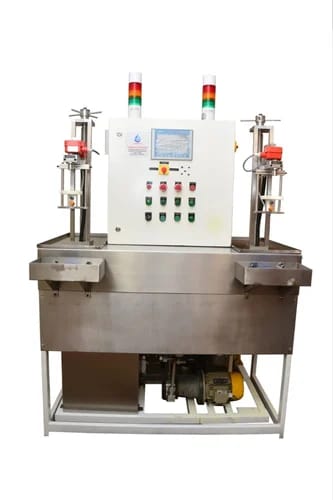

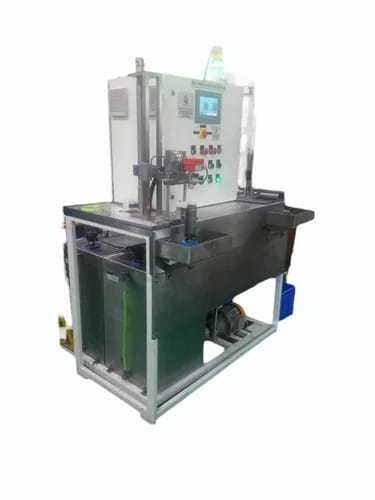

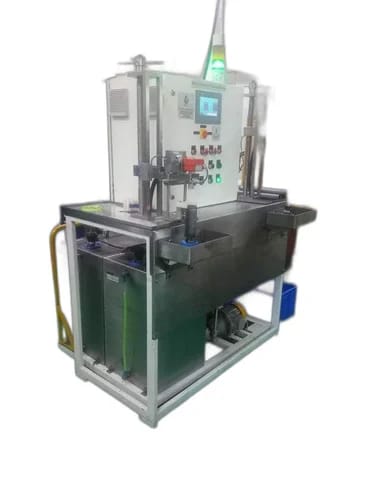

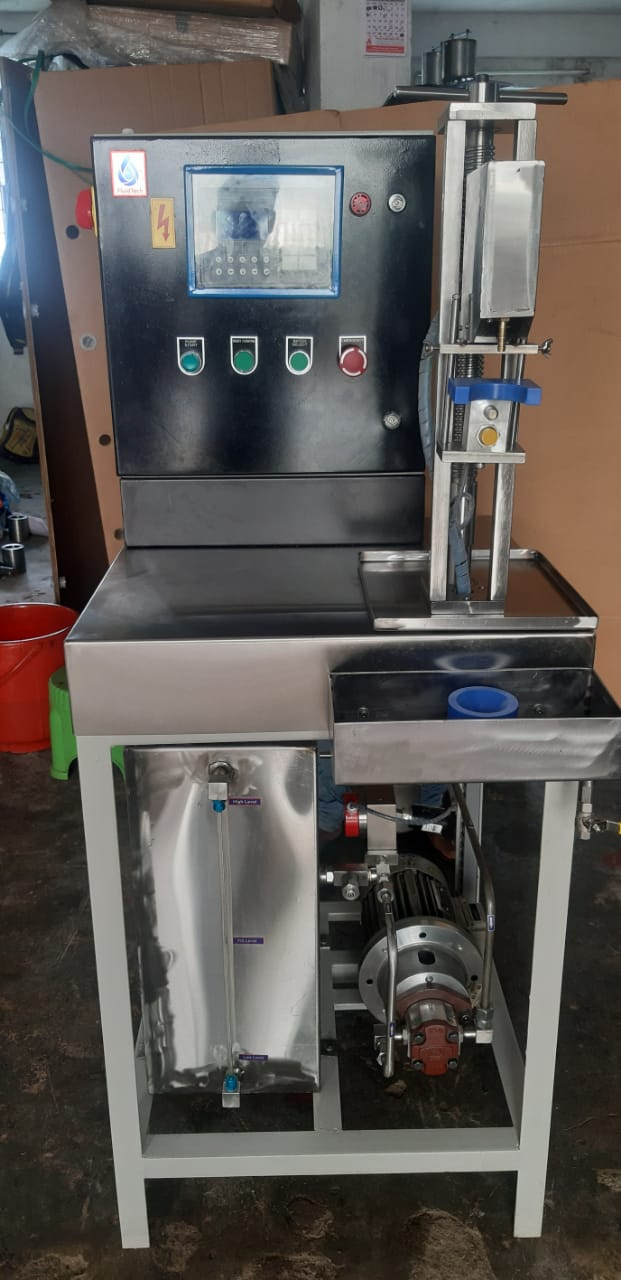

Automatic Liquid Filling Machine (5000 ML/Min)

A high-production filling system equipped with advanced PLC controls and an intuitive HMI. Features a built-in 100L storage tank and a zero-drip dispensing nozzle, ideally suited for fast, precise bottle and container filling.

Specifications

Flowrate: 5000 ML per Minute
Accuracy: ± 2 ML
Batch Setting: 10 ML to 10000 ML
Programs: Up to 100 Pre-programmed batches
Storage Tank: Built-in 100 Ltr.
Filtration: 75 Micron
Power Supply: 415 V, 50 Hz

Key Features

PLC Controlled with Fingertip HMI
Zero Drip Dispensing Nozzle
Built-in 75 Micron Two-Stage Filter
Quickly Adjustable Nozzle Height
Advanced Display (Set, Delivered, Flowrate, Tubes)
Cp/Cpk > 1.66 for all liquid types

Get Enquiry WhatsApp

Oil Purification

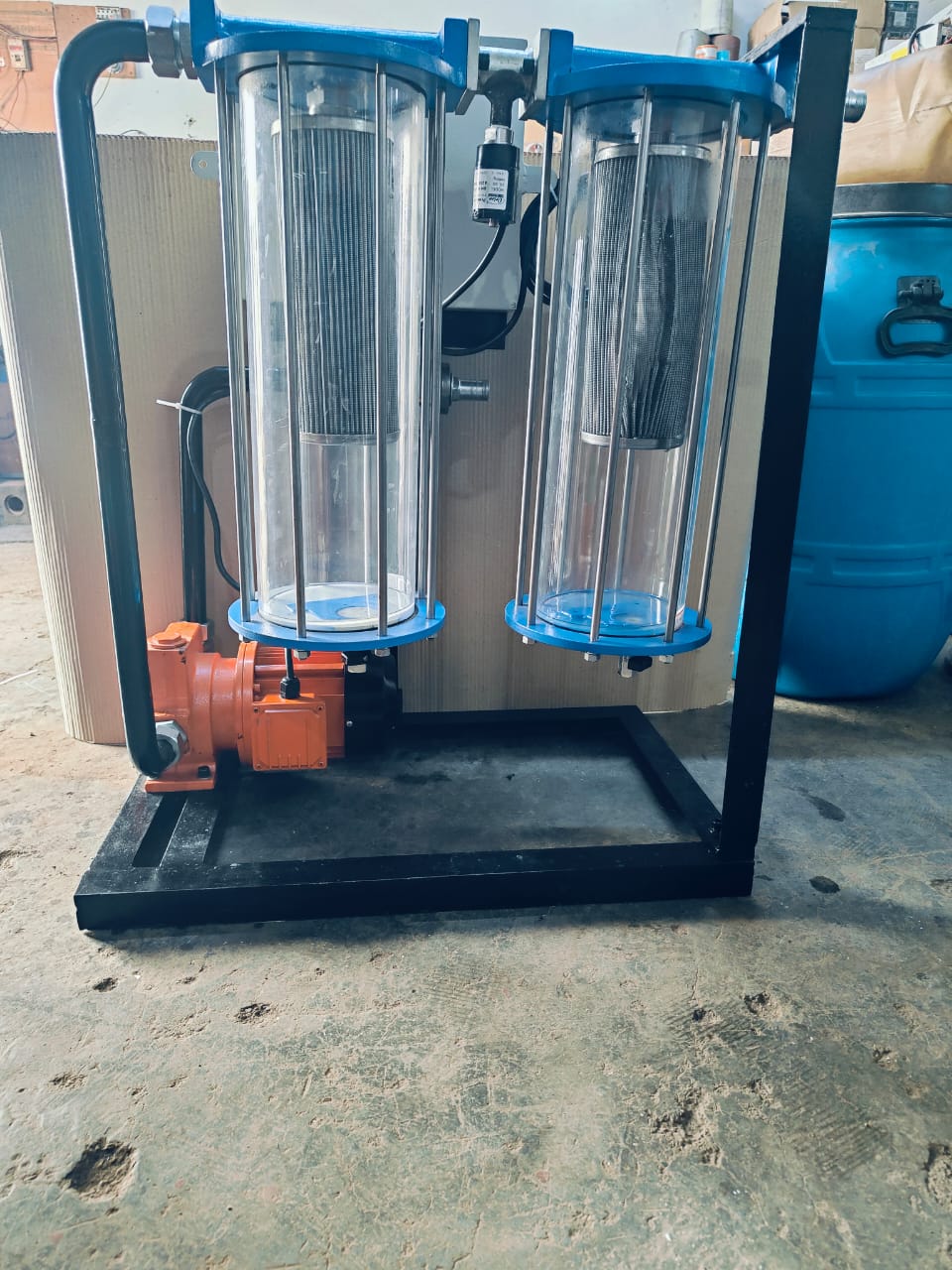

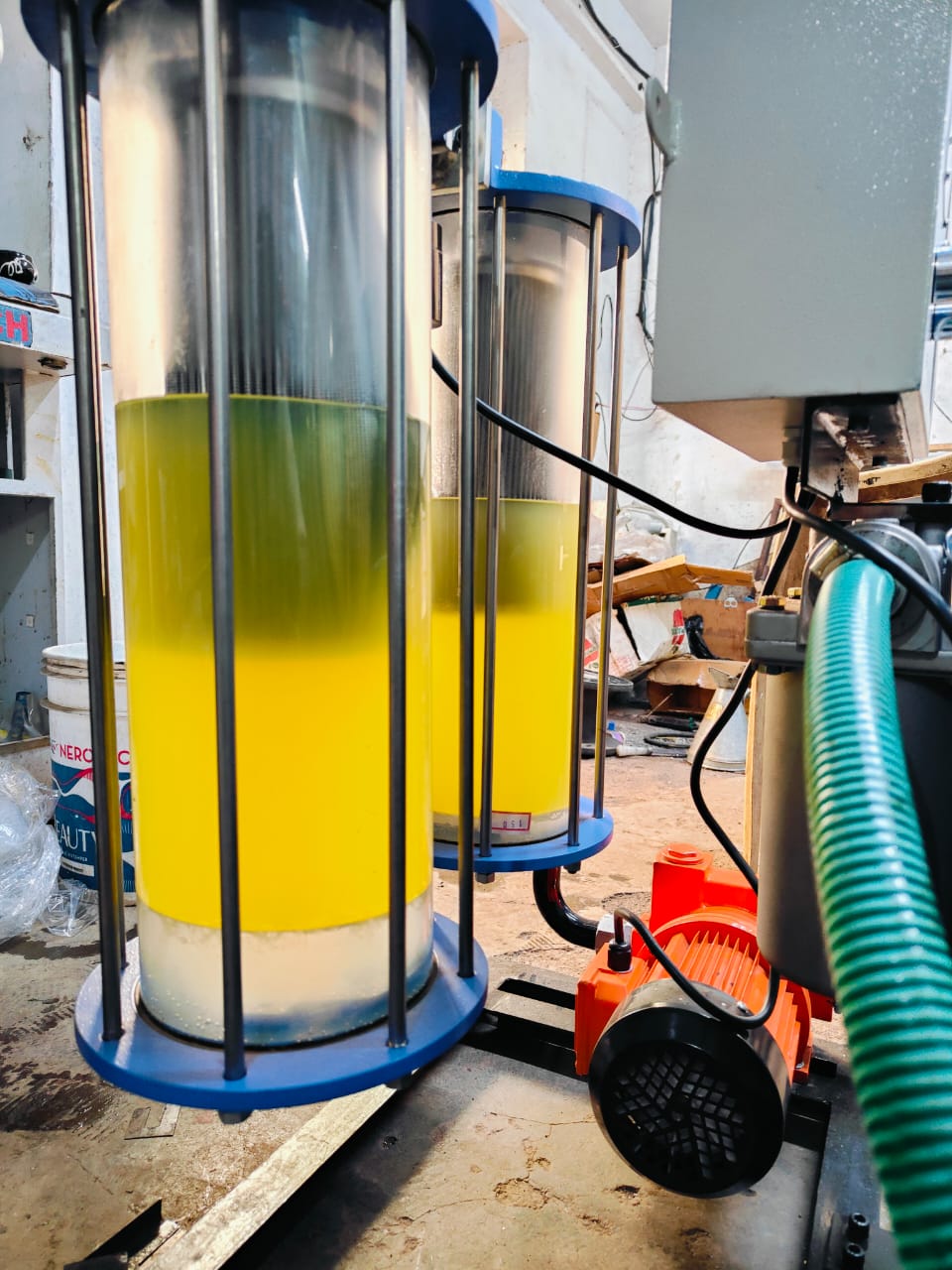

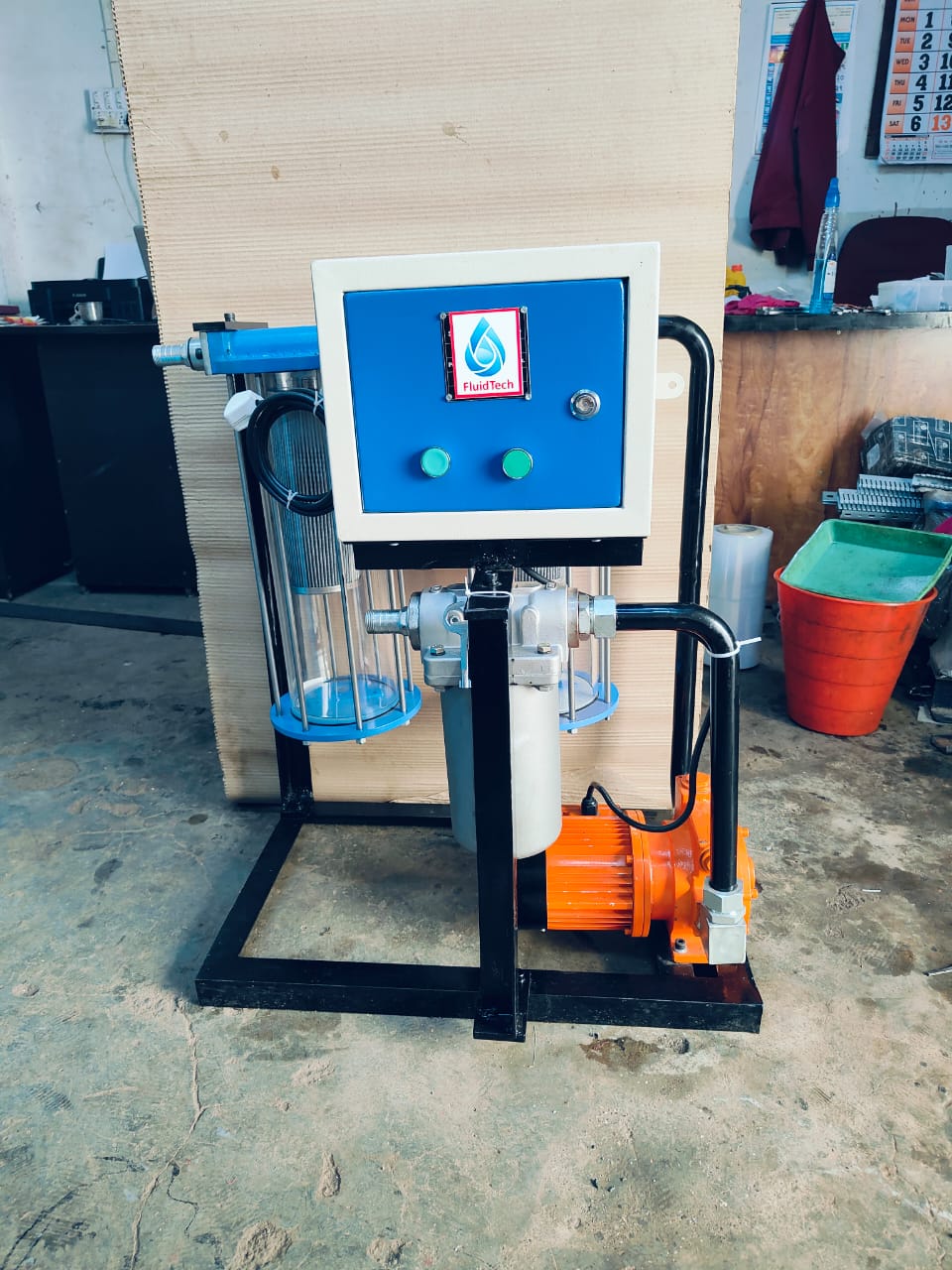

Hydraulic Oil Purification System

A high-performance moisture extraction and filtration unit designed to keep hydraulic fluids clean and varnish-free. By safely removing trace moisture, it protects internal components and maximizes machinery uptime.

Specifications

Moisture Extraction: Down to <100ppm
Max Operating Temp: 80°C
Max Operating Pressure: 16 Kg/cm²
Power Supply: 230V AC

Key Benefits

Eliminates Unexpected Breakdowns
Ensures Stable Fluid Viscosity
Enables Faster Machine Cycle Times
Halts Corrosive Acid Formation
Protects Internal Metal Surfaces

Get Enquiry WhatsApp

PD Meters

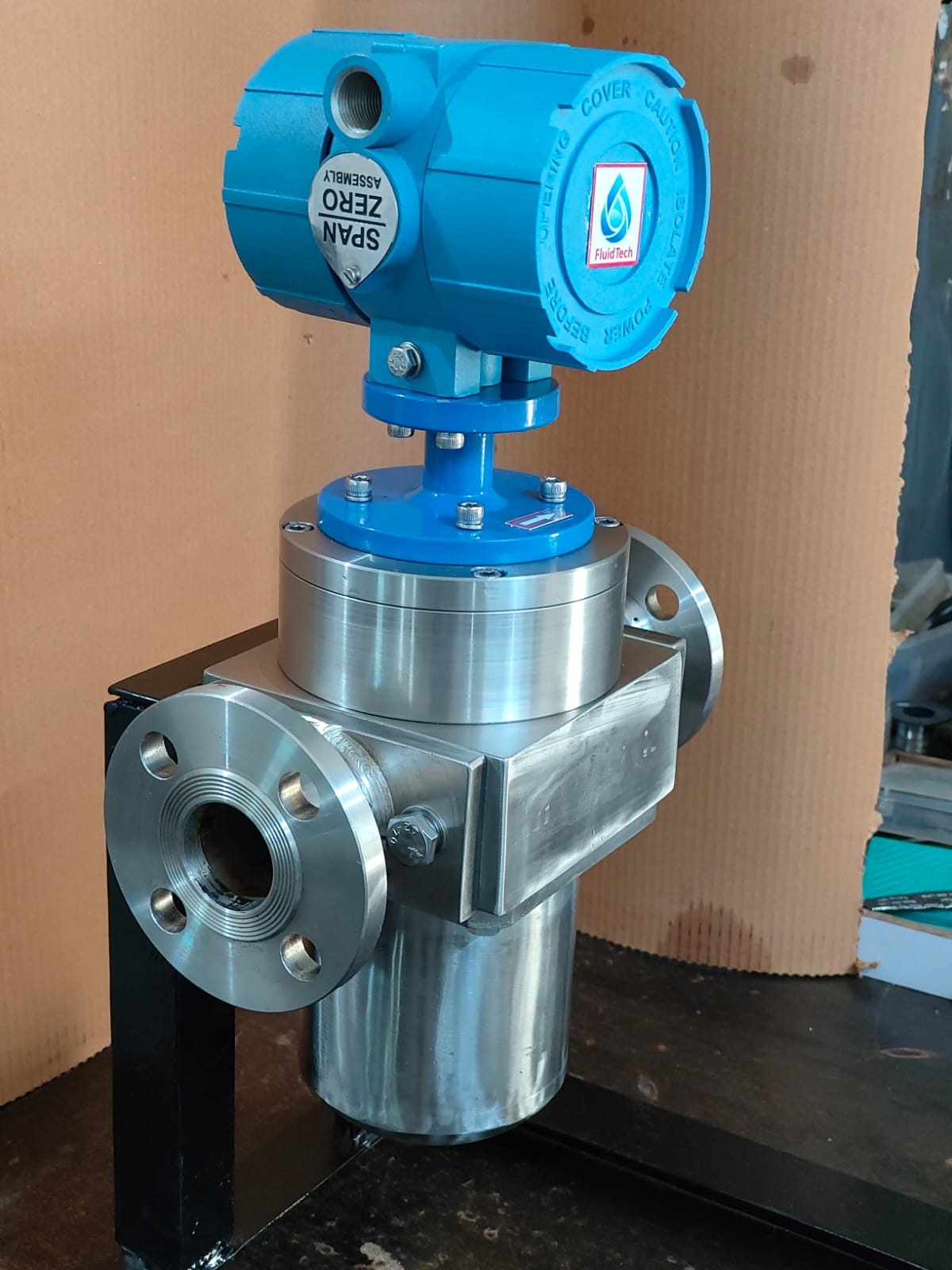

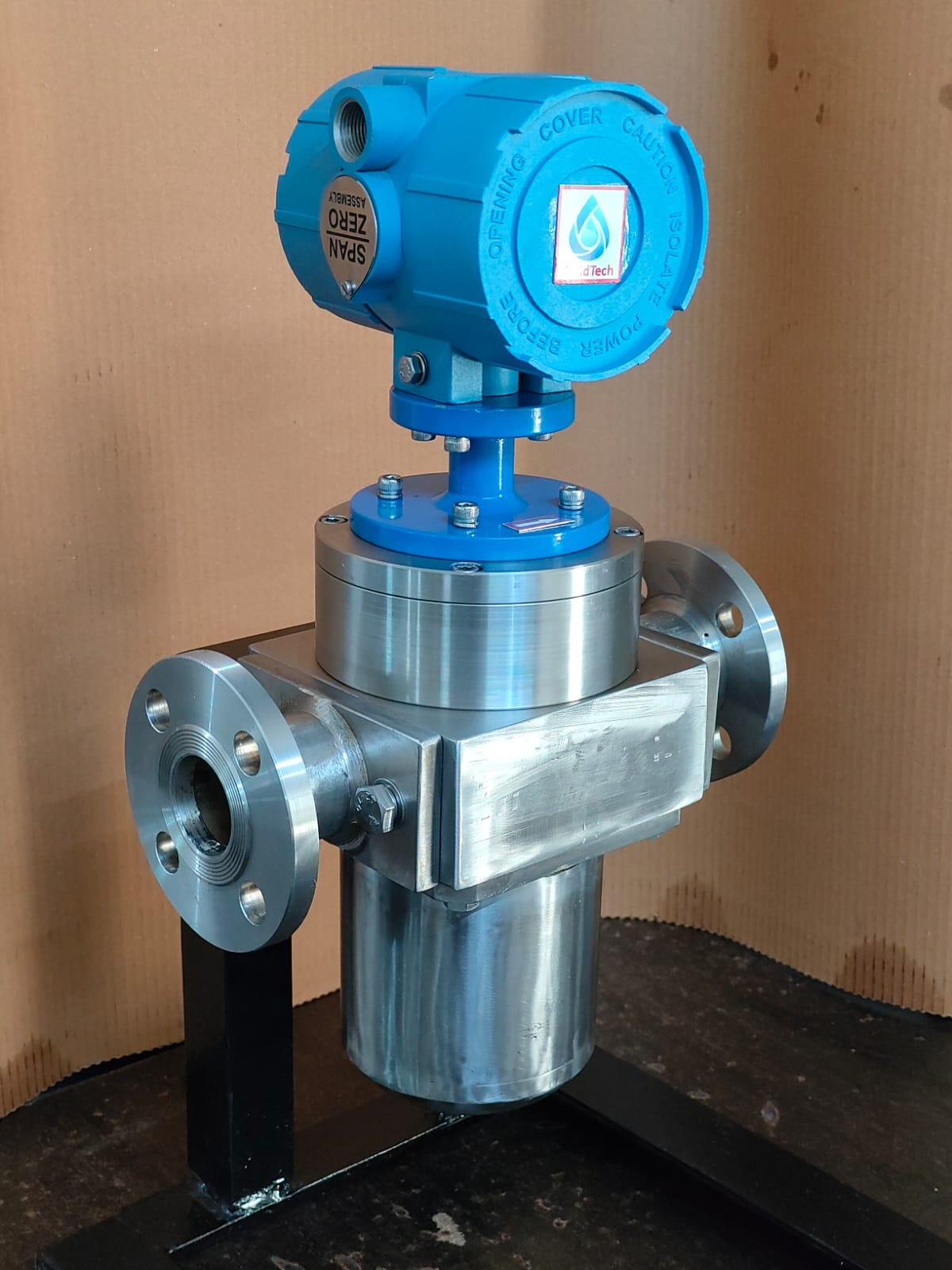

Stainless Steel P.D. Flow Meter (DN-12 to DN-80)

A premium single moving part flow meter constructed from SS 304 / SS 316. specifically engineered for rigorous applications in Chemical Industries, Pharmaceuticals, and Food processing. Features a robust flame-proof and weather-proof electronic display.

Specifications

Size: DN- 12 To DN- 80
Flow Range: 2 – 400 LPM
Application: Chemical, Pharma & Food
MOC: SS 304 / SS 316
Accuracy: ±0.5% of Reading
Max Press / Temp: 20 Kg/cm² / 90°C
Power: 230 V AC / 12 V DC

Key Features

Flame & Weather-proof Enclosures
LCD Matrix Display for Easy Readability
RS485 Serial Modbus Output
Resettable & Cumulative Totalise
Wide Range: 2400 to 24000 LPH
High Durability PEEK Piston

Get Enquiry WhatsApp
