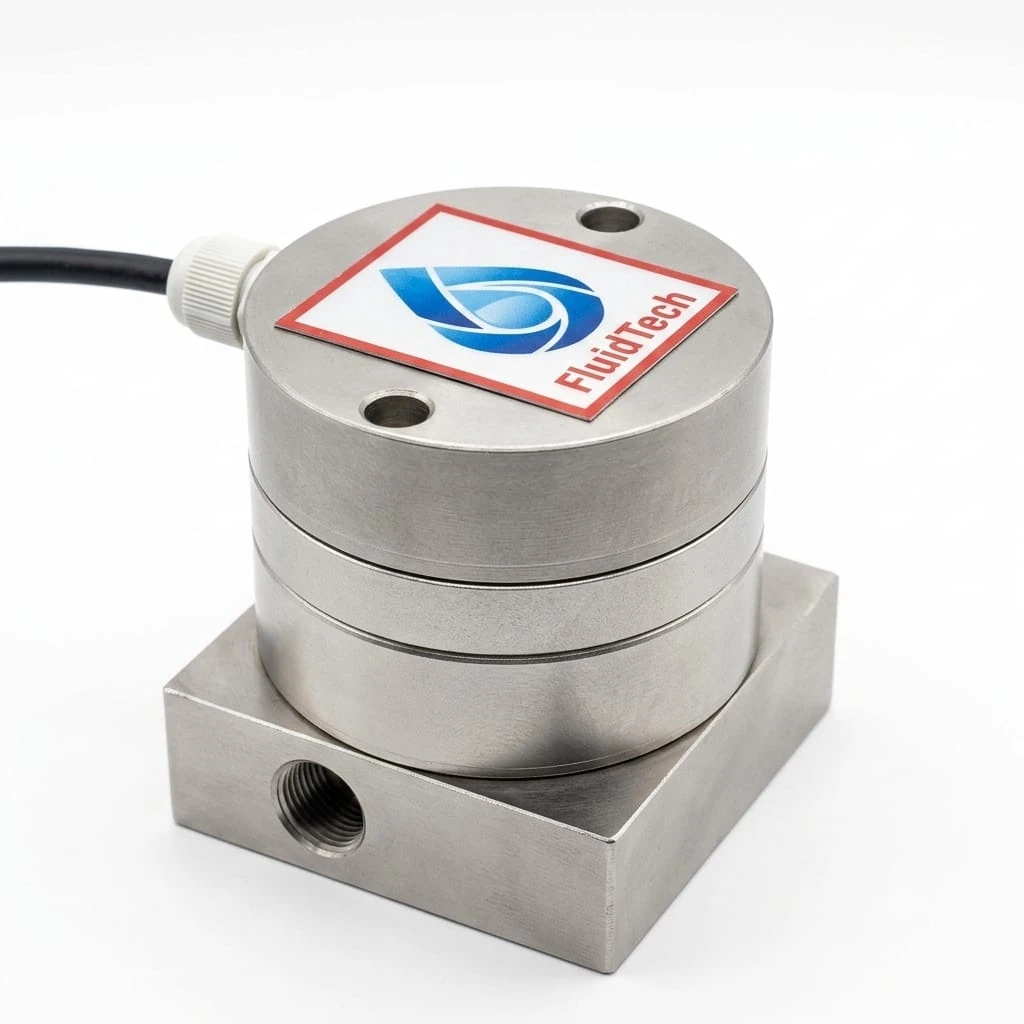

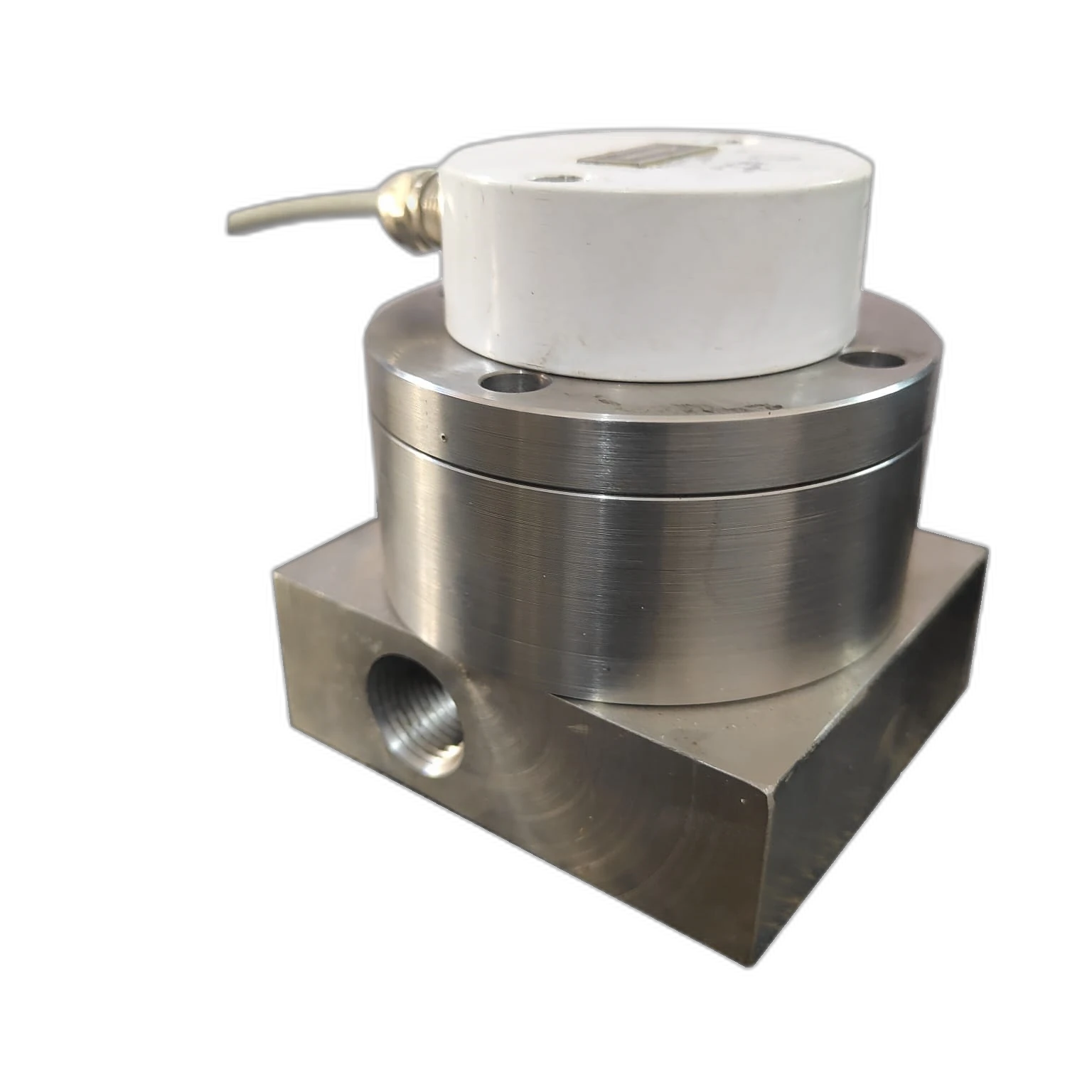

Series FT2300-20 PD Flow Meter
The Fluid Tech P.D Flow Meter are designed to accurately measure and monitor the precise quantities of liquid fuels and solvent, the result is that the meter can measure intermittent flows, very low flow rates, and liquids of almost any viscosity. It gives accurate and precise reading; The LCD with back light display ensures easy readability.
Specifications
- Size: DN- 20 (3/4")
- Flow Range: 2 – 35 LPM
- Accuracy: ±0.25% of Reading
- Max Pressure: 10 Kg/cm²
- Operating Temp: 90°C Max
- Output: Pulse. NPN
Key Features
- High Accuracy P.D Flow Sensor
- LCD Matrix Display
- RS485 Serial Modbus Output
- Resettable & Cumulative Totalise
